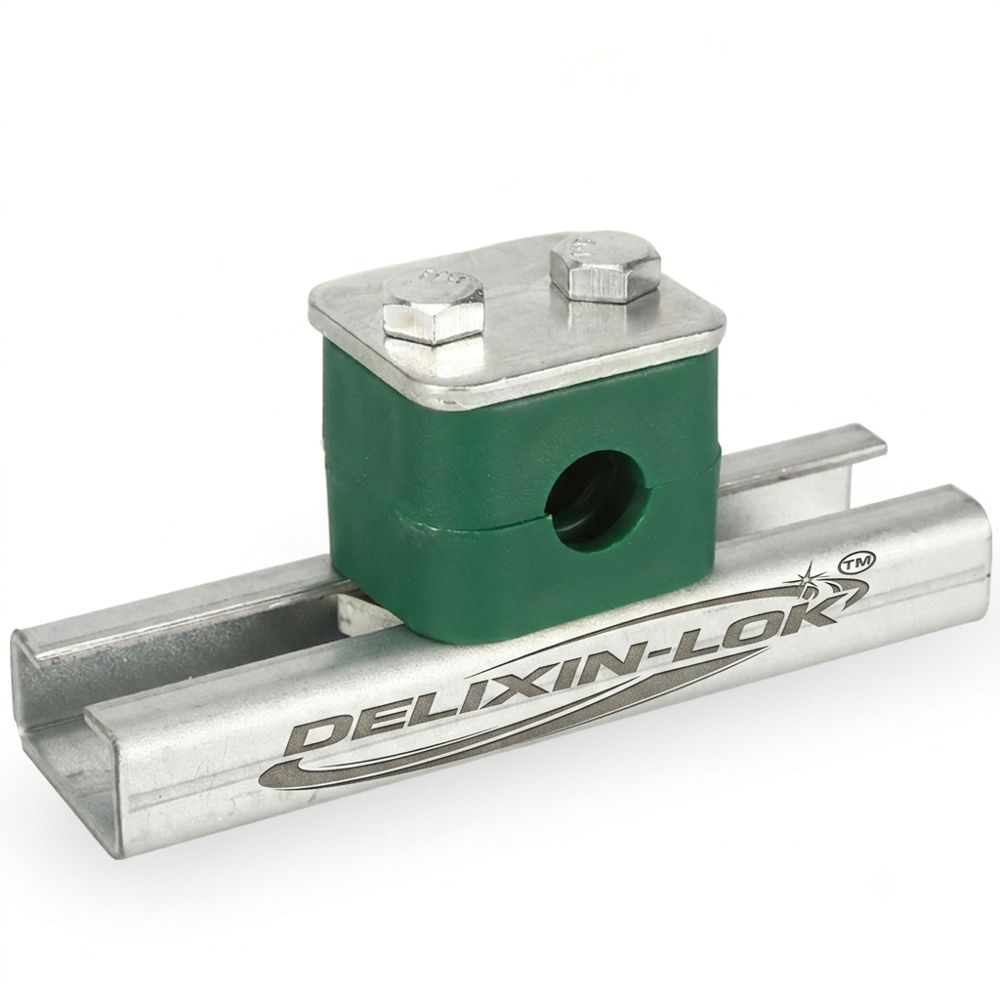

Mounting Rail Pipe Clamps

Name: Mounting Rail Pipe Clamps
Brand: DELIXIN ENTERPRISES
Price: 380.0 INR
Availability: InStock

Price 380.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Mounting Rail Pipe Clamps Specification

Product Type
Mounting Rail Pipe Clamp

Material
Polypropylene (body) & Galvanized Steel (cover plate & rail)

Type
Heavy Duty/Standard Duty

Shape
Rectangular Block with Central Hole

Technique
Injection Molding (Clamp), CNC Machining (Metal Parts)

Surface Treatment
Galvanized/Polished (Metal parts)

Standard
DIN 3015

Outer Diameter
Corresponds to clamp size, variable

Length
According to specification, e.g., 50mm, 100mm, 200mm rail as needed

Inside Diameter
As per requirement (typically 6mm to 114mm)

Wall Thickness
N/A for clamp block; rail typically 1.5mm-2.5mm

Tensile Strength
High mechanical strength, as per DIN standard

Grade
Industrial

Size
Multiple sizes available

Color
Green (Clamp), Silver (Metal Parts)

Bolt Type
Hex bolts (zinc plated or stainless steel available)

Applications
Hydraulic piping, pneumatic piping, industrial piping installation

Mounting Method
To be mounted on C-rail/Strut channel

Corrosion Resistance
Yes (due to polypropylene and galvanized finish)

Temperature Resistance
-30C to 90C

Noise Damping
Excellent vibration and noise reduction

About Mounting Rail Pipe Clamps

Brand	DELIXIN-LOK
Equivalent To	STAUFF, SWAGELOK, PARKER
Application	Automobile Industry, Construction, Pharmaceutical / Chemical Industry, Oil & Gas Industry, RAILWAY
COLOR	SILVER
Size	1 /4 to 2 6 mm to 76.1 mm
Raw Material	C.S, SS 304 , SS 316, SS 3014 L , SS 316 L
Thickness	1.5 mm. 2 mm 2.5-3 mm
Finish	Galvanized 275 GSM
C Channel Size	1 meter
Material	Steel Aluminum

PRODUCT	PIPE CLAMPS
STANDERED	ACCORDING TO DIN 3015 DIN 3015-PART1 DIN 3015-PART2 DIN 3015-PART3
STANDERED SERIES	FOR PIPE OD -6 MM TO 76.1 MM
HEAVY SERIES	FOR PIPE OD -6 MM TO 219 MM
TWIN SERIES	FOR PIPE OD -6 MM TO 42 MM
ACCESSORIES	CLAMPS WITH RUBBER INSERT CLAMPS WITH MOUNTAIN RAILS CLAMPS WITH STACKING LAYERS
CONSTRUCTION OF CLAMPS BODY	BOTH CLAMPS HALVES ARE IDENTICAL

Designed as per DIN-3015 Part 1
Easy to install.
Easy to Maintain.

Hex Bolts
Cover Plate
Cushion Set
Rail Nuts
O- Rings

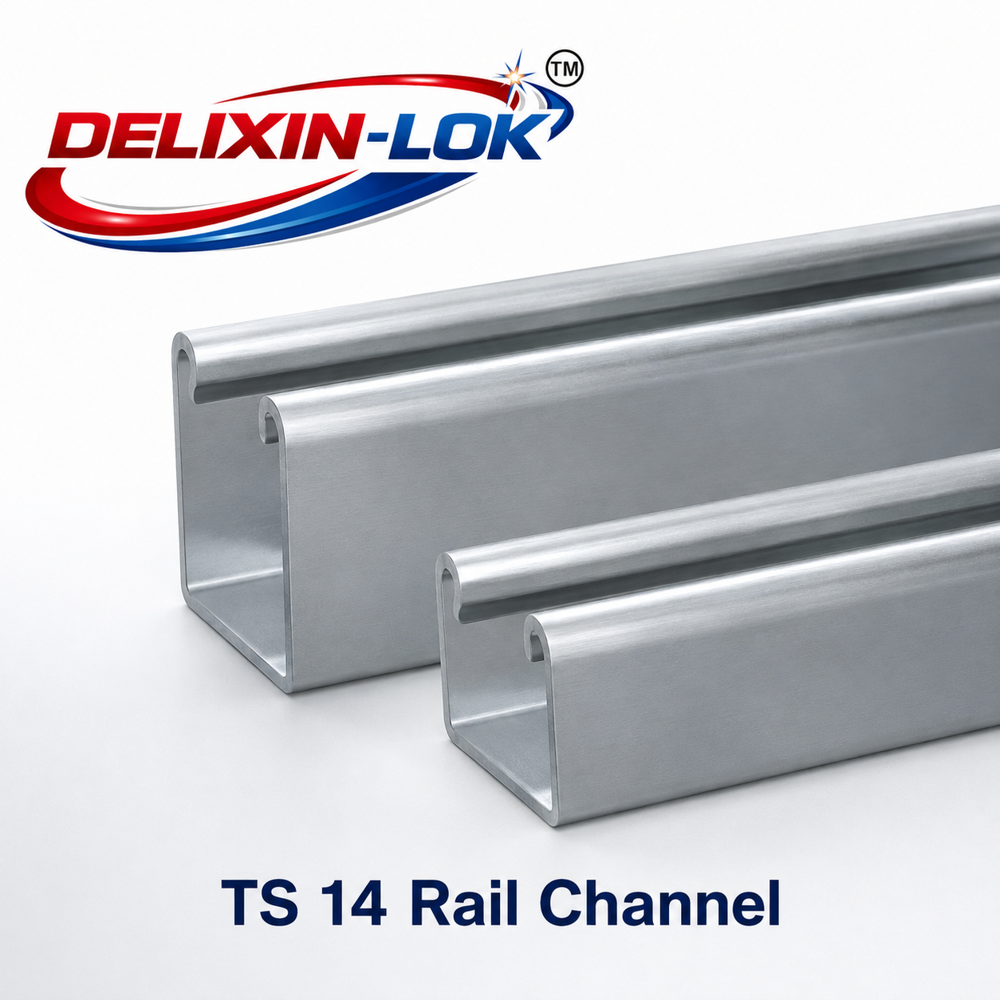

C-Rail

heavy duty rail nut pipe clamps
hydraulic Rail Nut Mounted Standard Pipe Clamp

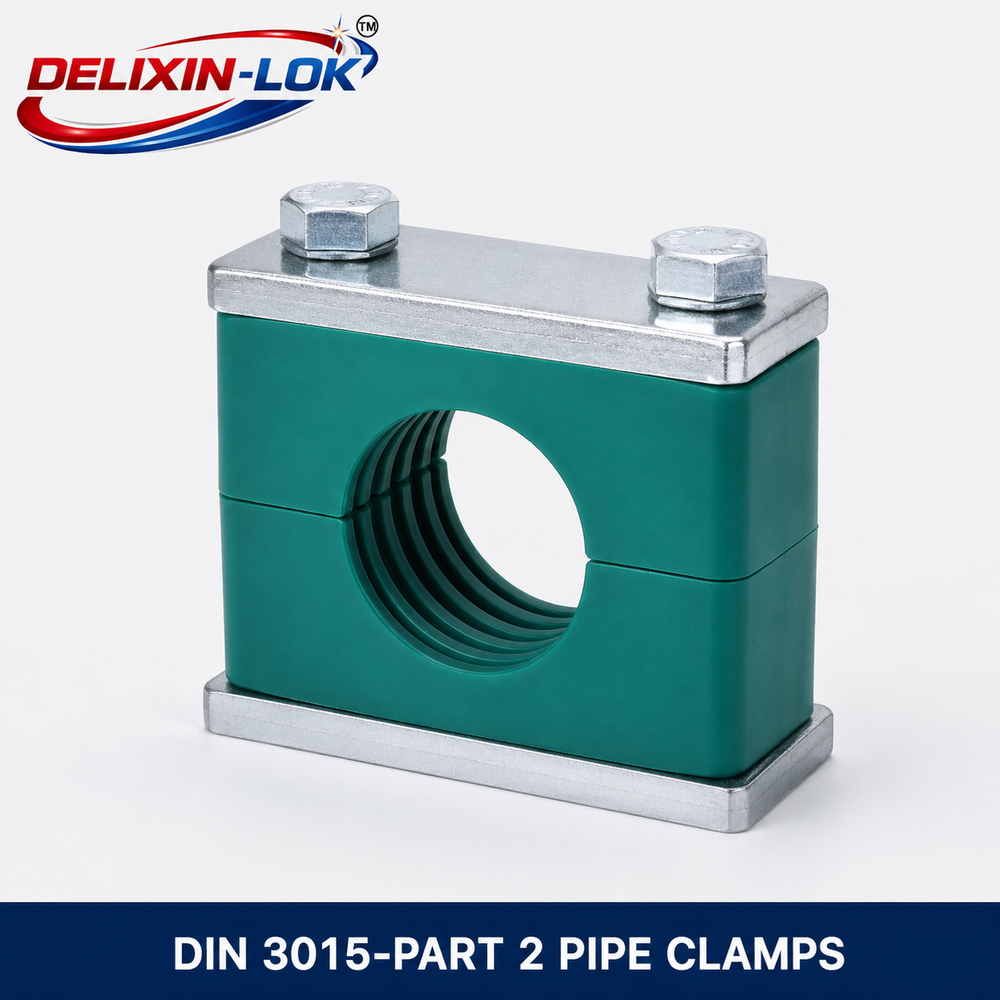

DIN 3015 standard heavy duty clamp with rail nuts
DIN 3015 light duty plastic pipe clamp with rail nuts

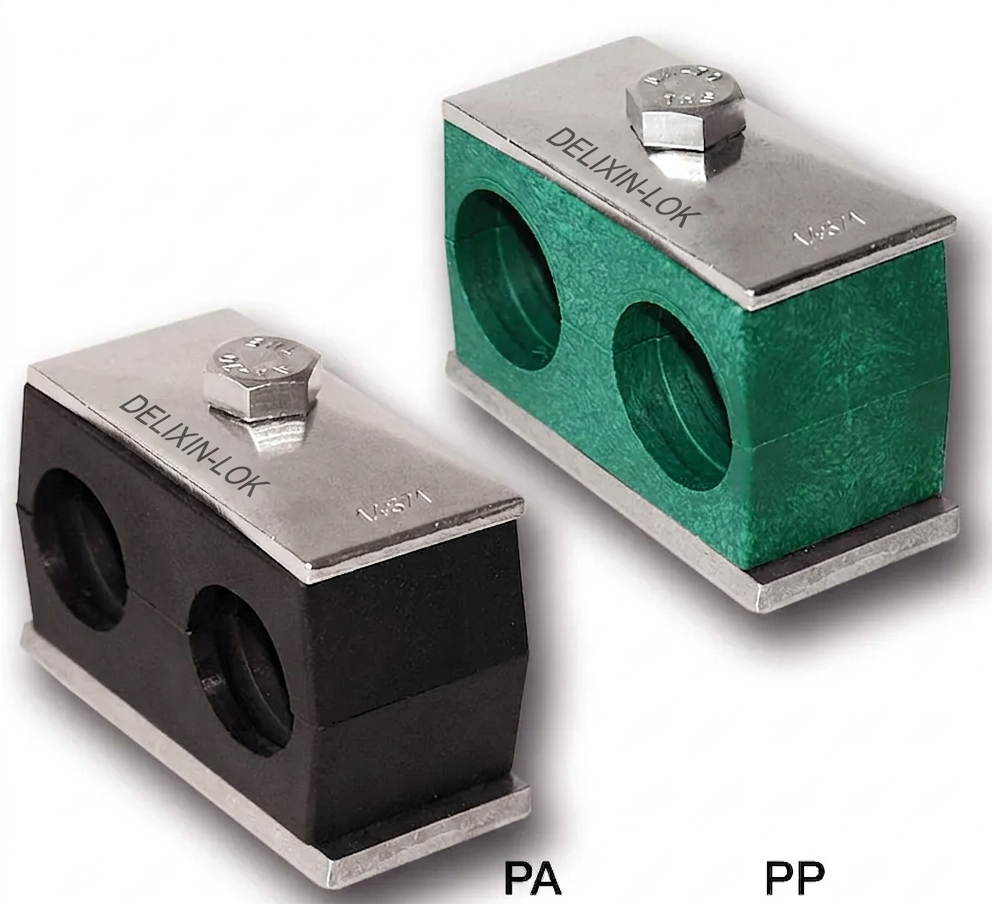

Plastic twin pipe clamp with rail nut
Hydraulic heavy pipe clamp with rail nuts

Superior Noise and Vibration Control

Engineered with precision, these pipe clamps deliver outstanding vibration damping and noise suppression, enhancing safety and comfort in busy industrial environments. Their robust polypropylene construction absorbs shocks and reduces operational disturbances in hydraulic and pneumatic piping systems.

Reliable Corrosion Resistance

Benefit from long-term performance, even in challenging conditions. The use of polypropylene and a galvanized steel finish safeguards the clamps against corrosion, making them suitable for humid, outdoor, or corrosive environments where longevity and strength are paramount.

Versatile Sizing and Standards Compliance

Available in multiple diameters and lengths, our clamps meet industrial specifications and are manufactured under the strict guidance of DIN 3015. The design allows flexibility for different pipe sizes while delivering consistent strength and secure mounting.

FAQ's of Mounting Rail Pipe Clamps:

Q: How do I mount these pipe clamps onto a system?

A: These pipe clamps are designed to be securely mounted onto C-rails or strut channels. Installation is straightforward using zinc-plated or stainless steel hex bolts, ensuring a stable and reliable hold for your piping system.

Q: What applications are best suited for these mounting rail pipe clamps?

A: Our clamps are ideal for hydraulic, pneumatic, and industrial piping installations. Their high mechanical strength and noise damping make them suitable for factories, machinery setups, and environments where secure and quiet pipe support is needed.

Q: When should I use a heavy duty versus a standard duty clamp?

A: Choose heavy duty clamps for high-pressure or high-vibration applications, such as large-diameter hydraulic lines. Standard duty clamps are sufficient for lighter-duty, low-pressure installations, offering efficient support and noise reduction.

Q: Where can these clamps be used considering their temperature and corrosion resistance?

A: The clamps function reliably in temperatures from -30C to 90C and resist corrosion due to the polypropylene body and galvanized finish. They are suitable for both indoor and outdoor installations, including humid or mildly corrosive environments.

Q: What sizes are available for these pipe clamps?

A: A range of inside diameters is available, typically from 6mm up to 114mm, as well as various rail lengths (50mm, 100mm, 200mm). This variety accommodates different pipe sizes and installation requirements.

Q: What is the benefit of the excellent vibration and noise reduction feature?

A: The advanced noise and vibration damping helps minimize disturbances, prolongs system component life, and enhances workplace safety and comfort, especially in sensitive or high-precision industrial settings.

Q: How are these clamps manufactured and what standards do they meet?

A: Clamp bodies are produced via injection molding of polypropylene, while the steel components are CNC machined and galvanized for durability. All clamps conform to DIN 3015 standards, guaranteeing industrial-grade quality and performance.
