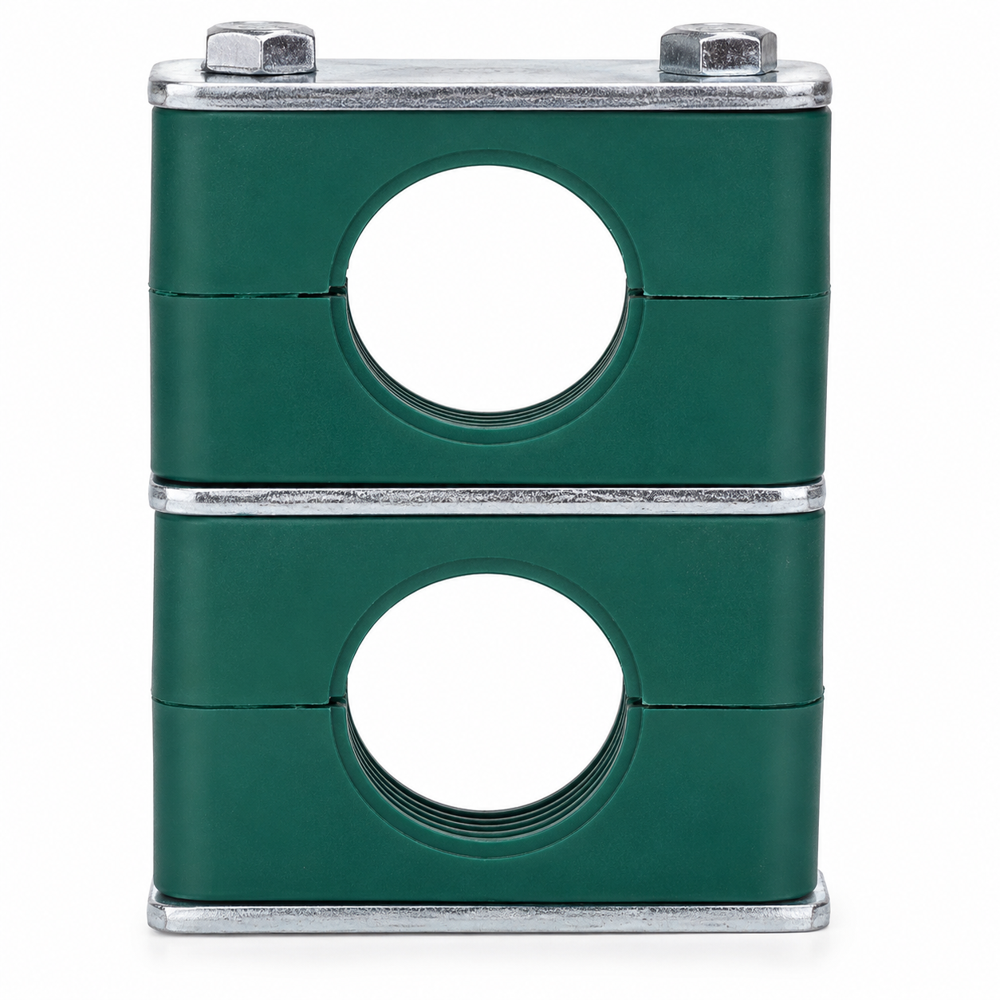

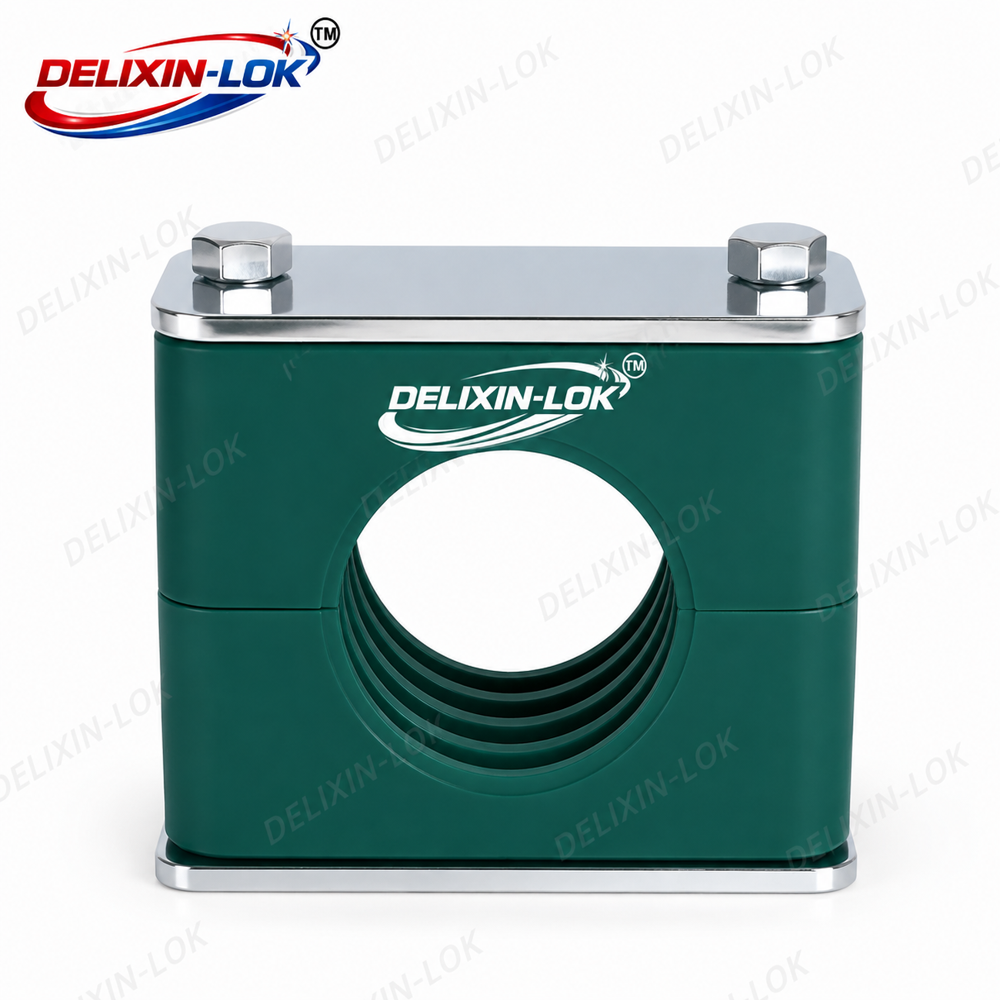

Multilayer Pipe Clamps

Name: Multilayer Pipe Clamps
Brand: DELIXIN ENTERPRISES
Price: 350.0 INR
Availability: InStock

Price 350.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Multilayer Pipe Clamps Specification

Product Type
Multilayer Pipe Clamp

Material
Polypropylene (PP) body with steel hardware

Type
Twin / Double Clamp

Shape
Rectangular with circular bore

Technique
Injection Molding for clamp body, Pressed Metal for plates

Surface Treatment
Zinc plated or stainless steel plates

Standard
DIN 3015

Outer Diameter
Suitable for pipes with OD 6 mm to 102 mm

Length
Varies by size (typically 40 mm to 200 mm as required)

Inside Diameter
6 mm to 102 mm

Wall Thickness
5 mm to 10 mm (plastic body)

Tensile Strength
Up to 1600 N/cm2 (Depends on material & size)

Grade
Industrial Grade

Size
6 mm, 10 mm, 12 mm, 15 mm, 18 mm, 22 mm, 28 mm, 35 mm, 42 mm, 54 mm, 64 mm, 76 mm, 89 mm, 102 mm and custom sizes

Color
Green (standard), custom colors available

Flammability Class
UL 94 V-2 (standard PP material)

Weight
Depends on size, approximately 150 g to 800 g per set

Reusable
Yes, reusable after inspection

Temperature Range
-30C to +90C (Polypropylene body)

Mounting
Weldable base plate or bolt-on type

Clamp Series
Light duty, heavy duty, twin series

Vibration Damping
Good (as per DIN 3015)

Fire Resistance
Optional fire-resistant material available

Application
Hydraulic, pneumatic, process piping

Corrosion Resistance
High with stainless steel hardware

About Multilayer Pipe Clamps

Brand	DELIXIN-LOK
Equivalent To	STAUFF, SWAGELOK, PARKER
Locking Screw	M6 TO M24
Material	Jaws Polypropylene, Aluminum, Polyamide Top & Bottom Plate and Bolt Steel or Stainless Steel
Size Range	1/ 4 TO 8 6 MM TO 219.1 MM

Available in plastic / aluminum bodies with steel or stainless steel plates and bolts
Resistant to corrosion and rust
Multilayer Pipe Tube clamps are specially designed for light duty / heavy duty & twin series only

Carbon steel trivalent or yellow zinc plated (standard trivalent plated)
Carbon steel phosphated
Stainless steel SS 304 or SS 303
Stainless steel SS 316.

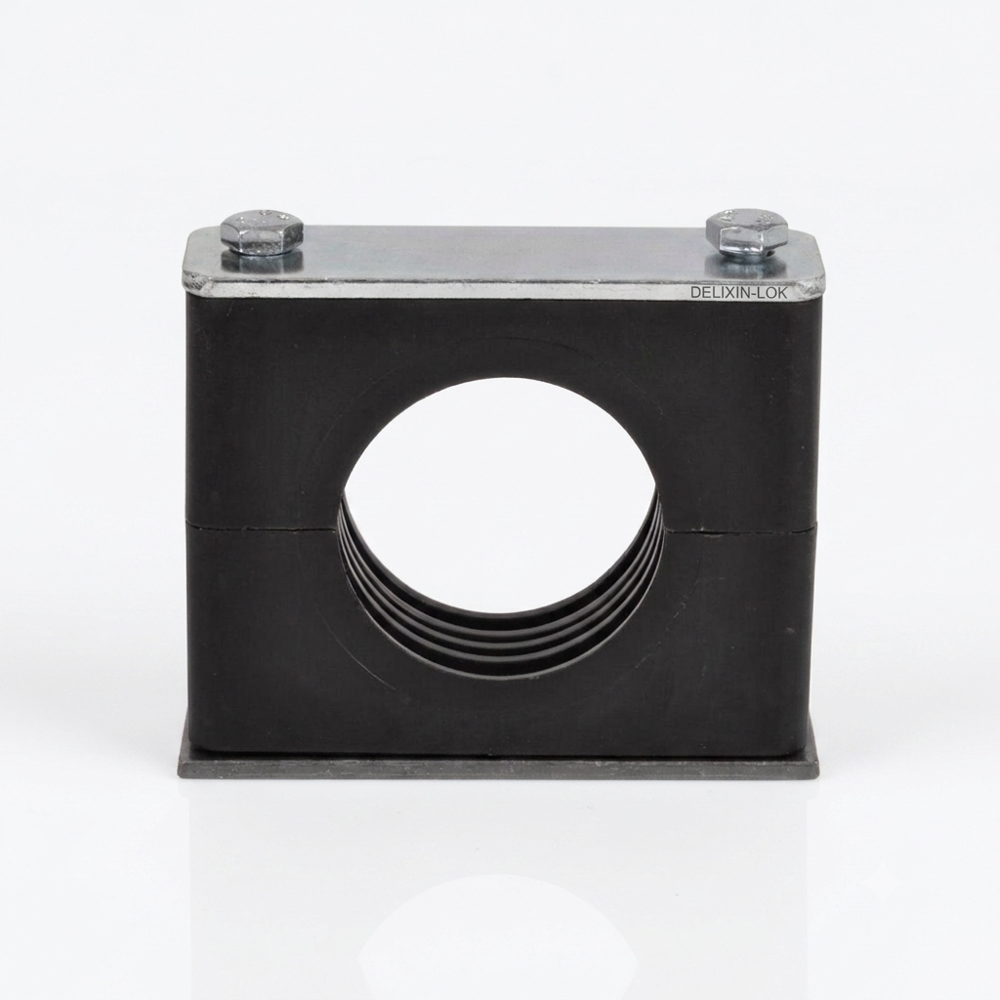

DELIXIN-LOK VPCH Hydraulic Pipe Clamp

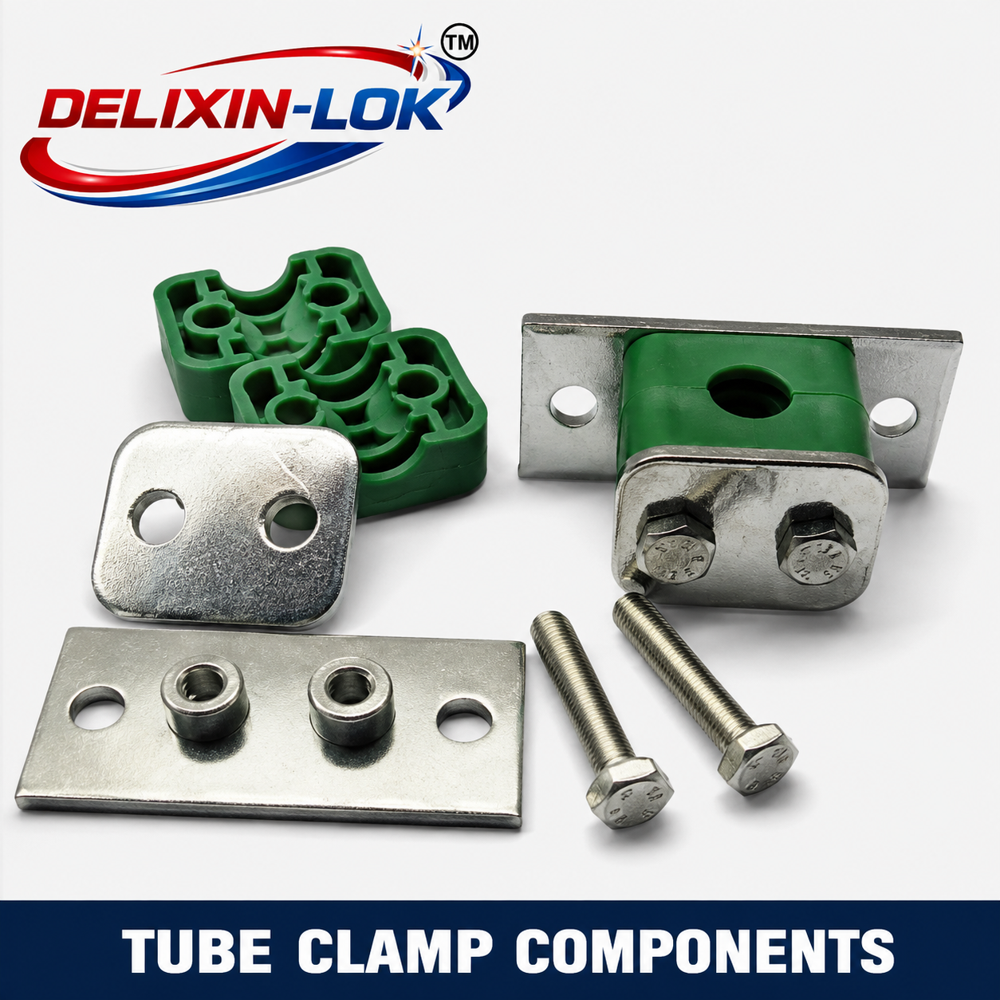

ONE SET = ONE TOP PLATE + ONE BOTTOM PLATE + ONE LOCKING PLATE + 2 STACKING BOLTS + 2 HEX BOLTS + 2 SETS OF PP JAWS

Group	DELIXIN-LOK Part Code	Pipe OD (Dia-d)	a2	a3	a1	b1	G	S	h1	h2	Hex Bolt Size
GROUP 1
1	DELIXIN-LOK VPCH 6 MM 2	6	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 6.4 MM 2	6.4	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 8 MM 2	8	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 9.5 MM 2	9.5	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 10 MM 2	10	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 12 MM 2	12	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 12.7 MM 2	12.7	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 13.7 MM 2	13.7	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 14 MM 2	14	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 15 MM 2	15	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 16 MM 2	16	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 17.2 MM 2	17.2	70	55	33	30	0.61	8	24	48	M10 45 MM
1	DELIXIN-LOK VPCH 18 MM 2	18	70	55	33	30	0.61	8	24	48	M10 45 MM
GROUP 2
2	DELIXIN-LOK VPCH 19 MM 2	19	85	70	45	30	0.61	8	32	64	M10 60 MM
2	DELIXIN-LOK VPCH 20 MM 2	20	85	70	45	30	0.61	8	32	64	M10 60 MM
2	DELIXIN-LOK VPCH 21.3 MM 2	21.3	85	70	45	30	0.61	8	32	64	M10 60 MM
2	DELIXIN-LOK VPCH 22 MM 2	22	85	70	45	30	0.61	8	32	64	M10 60 MM
2	DELIXIN-LOK VPCH 25 MM 2	25	85	70	45	30	0.61	8	32	64	M10 60 MM
2	DELIXIN-LOK VPCH 26.9 MM 2	26.9	85	70	45	30	0.61	8	32	64	M10 60 MM
2	DELIXIN-LOK VPCH 28 MM 2	28	85	70	45	30	0.61	8	32	64	M10 60 MM
GROUP 3
3	DELIXIN-LOK VPCH 30 MM 2	30	100	85	76	30	0.61	8	38	76	M10 70 MM
3	DELIXIN-LOK VPCH 32 MM 2	32	100	85	76	30	0.61	8	38	76	M10 70 MM
3	DELIXIN-LOK VPCH 33.7 MM 2	33.7	100	85	76	30	0.61	8	38	76	M10 70 MM
3	DELIXIN-LOK VPCH 35 MM 2	35	100	85	76	30	0.61	8	38	76	M10 70 MM
3	DELIXIN-LOK VPCH 38 MM 2	38	100	85	76	30	0.61	8	38	76	M10 70 MM
3	DELIXIN-LOK VPCH 40 MM 2	40	100	85	76	30	0.61	8	38	76	M10 70 MM
3	DELIXIN-LOK VPCH 42 MM 2	42	100	85	76	30	0.61	8	38	76	M10 70 MM
GROUP 4
4	DELIXIN-LOK VPCH 42.3 MM 2	42.3	140	120	90	45	2	10	52.5	105	M12 100 MM
4	DELIXIN-LOK VPCH 48.3 MM 2	48.3	140	120	90	45	2	10	52.5	105	M12 100 MM
4	DELIXIN-LOK VPCH 50.8 MM 2	50.8	140	120	90	45	2	10	52.5	105	M12 100 MM
4	DELIXIN-LOK VPCH 60.3 MM 2	60.3	140	120	90	45	2	10	52.5	105	M12 100 MM
4	DELIXIN-LOK VPCH 63.5 MM 2	63.5	140	120	90	45	2	10	52.5	105	M12 100 MM
4	DELIXIN-LOK VPCH 65 MM 2	65	140	120	90	45	2	10	52.5	105	M12 100 MM
GROUP 5
5	DELIXIN-LOK VPCH 70 MM 2	70	180	152	122	60	2	10	70	140	M16 130 MM
5	DELIXIN-LOK VPCH 73 MM 2	73	180	152	122	60	2	10	70	140	M16 130 MM
5	DELIXIN-LOK VPCH 76.2 MM 2	76.2	180	152	122	60	2	10	70	140	M16 130 MM
5	DELIXIN-LOK VPCH 88.9 MM 2	88.9	180	152	122	60	2	10	70	140	M16 130 MM
GROUP 6
6	DELIXIN-LOK VPCH 101.6 MM 2	101.6	226	210	168	80	3	16	97	193195	M20 180 MM
6	DELIXIN-LOK VPCH 114.3 MM 2	114.3	226	210	168	80	3	16	97	193195	M20 180 MM
6	DELIXIN-LOK VPCH 127 MM 2	127	226	210	168	80	3	16	97	193195	M20 180 MM
6	DELIXIN-LOK VPCH 133 MM 2	133	226	210	168	80	3	16	97	193195	M20 180 MM
GROUP 7
7	DELIXIN-LOK VPCH 141.3 MM 2	141.3	270	251	205	90	3	16	116	230232	M24 225 MM
7	DELIXIN-LOK VPCH 152.4 MM 2	152.4	270	251	205	90	3	16	116	230232	M24 225 MM
7	DELIXIN-LOK VPCH 168.3 MM 2	168.3	270	251	205	90	3	16	116	230232	M24 225 MM
GROUP 8
8	DELIXIN-LOK VPCH 177.8 MM 2	177.8	340	336	265	120	3	25	160	320	M30 300 MM
8	DELIXIN-LOK VPCH 219.1 MM 2	219.1	340	336	265	120

Durable Performance in Demanding Environments

Our Multilayer Pipe Clamps are engineered for high performance across industrial applications, thanks to their robust polypropylene body and corrosion-resistant stainless steel hardware. Capable of withstanding challenging temperatures and resisting chemicals, they are suitable for hydraulic, pneumatic, and process piping where durability and ease of installation are critical.

Versatile Mounting Options and Customization

Choose from weldable base plates or bolt-on mounting types to suit your installation preferences. These clamps cater to a wide range of pipe sizes (OD 6 mm to 102 mm) and are available in green as standard, with customization options for color and size to fit unique application requirements.

Enhanced Safety and Vibration Control

Safety is integral to our design, with the option for fire-resistant materials and a flammability class of UL 94 V-2 for standard polypropylene clamps. Excellent vibration damping minimizes noise and wear, extending the service life of piping and reducing maintenance frequency.

FAQ's of Multilayer Pipe Clamps:

Q: How do I select the right size of Multilayer Pipe Clamp for my application?

A: To select the appropriate clamp size, measure your pipe's outer diameter and refer to our size options ranging from 6 mm to 102 mm. Custom sizes are available on request for pipes outside this range.

Q: What are the available mounting methods for these pipe clamps?

A: Our clamps can be installed using either weldable base plates or bolt-on types, offering flexibility based on your system's requirements and your installation preferences.

Q: When should the fire-resistant option be considered?

A: The optional fire-resistant material should be chosen for applications in environments with higher fire risks to comply with safety regulations and enhance overall protection for your piping system.

Q: Where can these clamps be used effectively?

A: These pipe clamps are suitable for industrial hydraulic, pneumatic, and process piping systems, especially where vibration, corrosion, and safety are concerns. They are widely used in manufacturing, chemical processing, and utility installations.

Q: What process is used to manufacture the clamp bodies and plates?

A: The clamp bodies are produced using injection molding for durability and consistency, while the base plates are made from pressed metal, either zinc-plated or stainless steel, to ensure structural integrity and corrosion resistance.

Q: How does the reusable design benefit maintenance operations?

A: After inspection to confirm integrity, the clamps can be reused, reducing operational costs and minimizing waste. This feature makes them both economical and environmentally friendly over repeated maintenance cycles.

Tell us about your requirement
