DELIXIN ENTERPRISES
DELIXIN-LOK

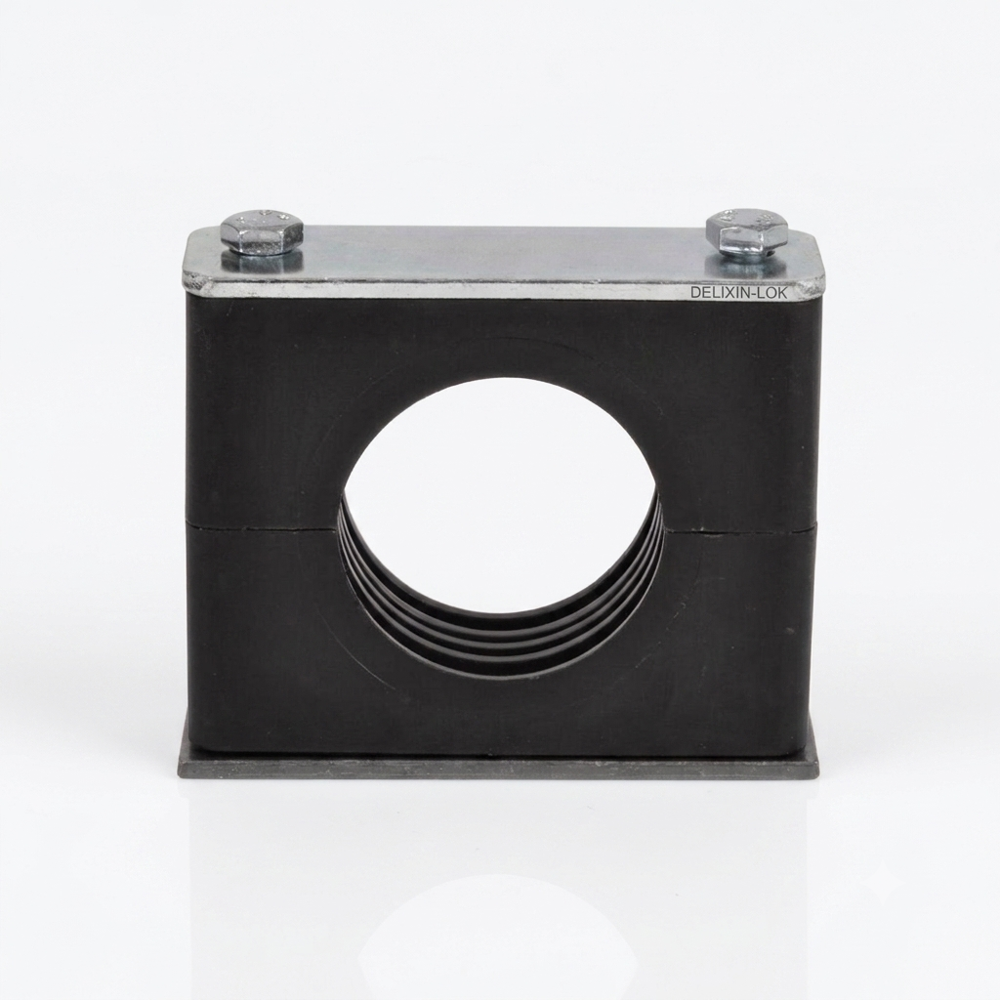

Polyamide Tube Clamp
Polyamide Tube Clamp
images Send Inquiry
Request To Call Back

Polyamide Tube Clamp

Price 195.0 INR/ Piece

Get a Price/Quote
MOQ : 100 Pieces

Polyamide Tube Clamp Specification

  • Product Type
  • Tube Clamp
  • Material
  • Polyamide (PA), Polyamide 6, Metal (Steel plate included)
  • Type
  • Heavy Series/Standard Series
  • Shape
  • Rectangular with center circular opening
  • Technique
  • Injection Molding
  • Surface Treatment
  • Uncoated (Clamp); Galvanized (Plate)
  • Standard
  • DIN 3015
  • Outer Diameter
  • As per model size
  • Length
  • As per model size
  • Inside Diameter
  • As per requirement (commonly 6 mm to 50 mm)
  • Wall Thickness
  • As per specification
  • Tensile Strength
  • High (specific values depend on grade, e.g. >70 N/mm2 for Polyamide 6)
  • Grade
  • Industrial Grade
  • Size
  • Customizable (6 mm - 50 mm OD supported)
  • Color
  • Black
  • Corrosion Resistance
  • High, due to Polyamide body and galvanized plate
  • Clamp Insert Material
  • Polyamide body with steel mounting plates
  • Application
  • Hydraulic and pneumatic tube/pipe support
  • Fire Resistance
  • Self-extinguishing (meets UL94-V2 for PA6)
  • Reusable
  • Yes
  • Temperature Range
  • -30C to +120C (continuous)
  • Vibration Damping
  • Excellent
  • Operating Pressure Range
  • Suitable for high pressure tube clamping
  • Flammability
  • UL94 V2
  • Mounting
  • Bolt mounted (M6/M8/M10 or as specified)



About Polyamide Tube Clamp

Polyamide Pipe Clamp Spec Chart

Brand DELIXIN-LOK
Equivalent To
 STAUFF, SWAGELOK, PARKER
Locking Screw M6X25,M6X20,M6X30,M5X15
Material Polyamid
Size Range 1 /4 to 2 6 mm to 76.1 mm
Structure Hydraulic



Following are Application of PA Clamps

  1. Used for fixing pipes of hydraulic industry: Water, Oil & Gas
  2. Aluminum, carbon steel built

DELIXIN-LOK PCLPA Hydraulic Pipe Clamp

ONE SET = ONE TOP PLATE + ONE BOTTOM PLATE + 2 HEX BOLTS + ONE PAIR OF PA JAWS

Group DELIXIN-LOK Part Code Pipe OD (Dia-d) a2 a3 a1 b1 G S h1 h2 Hex Bolt Size
GROUP 1
1 DELIXIN-LOK PCLPA 6 MM 6 43 34 20 30 0.4 3 27 33 M6 30 MM
1 DELIXIN-LOK PCLPA 6.4 MM 6.4 43 34 20 30 0.4 3 27 33 M6 30 MM
1 DELIXIN-LOK PCLPA 8 MM 8 43 34 20 30 0.4 3 27 33 M6 30 MM
1 DELIXIN-LOK PCLPA 9.5 MM 9.5 43 34 20 30 0.4 3 27 33 M6 30 MM
1 DELIXIN-LOK PCLPA 10 MM 10 43 34 20 30 0.4 3 27 33 M6 30 MM
1 DELIXIN-LOK PCLPA 12 MM 12 43 34 20 30 0.4 3 27 33 M6 30 MM
GROUP 2
2 DELIXIN-LOK PCLPA 12.7 MM 12.7 48 42 26 30 0.6 3 3233 38 M6 37 MM
2 DELIXIN-LOK PCLPA 13.7 MM 13.7 48 42 26 30 0.6 3 3233 38 M6 37 MM
2 DELIXIN-LOK PCLPA 14 MM 14 48 42 26 30 0.6 3 3233 38 M6 37 MM
2 DELIXIN-LOK PCLPA 15 MM 15 48 42 26 30 0.6 3 3233 38 M6 37 MM
2 DELIXIN-LOK PCLPA 16 MM 16 48 42 26 30 0.6 3 3233 38 M6 37 MM
2 DELIXIN-LOK PCLPA 17.2 MM 17.2 48 42 26 30 0.6 3 3233 38 M6 37 MM
2 DELIXIN-LOK PCLPA 18 MM 18 48 42 26 30 0.6 3 3233 38 M6 37 MM
GROUP 3
3 DELIXIN-LOK PCLPA 19 MM 19 56 50 33 30 0.6 3 36 42 M6 40 MM
3 DELIXIN-LOK PCLPA 20 MM 20 56 50 33 30 0.6 3 36 42 M6 40 MM
3 DELIXIN-LOK PCLPA 21.3 MM 21.3 56 50 33 30 0.6 3 36 42 M6 40 MM
3 DELIXIN-LOK PCLPA 22 MM 22 56 50 33 30 0.6 3 36 42 M6 40 MM
3 DELIXIN-LOK PCLPA 25 MM 25 56 50 33 30 0.6 3 36 42 M6 40 MM
GROUP 4
4 DELIXIN-LOK PCLPA 26.9 MM 26.9 62 60 40 30 0.6 3 42 48 M6 45 MM
4 DELIXIN-LOK PCLPA 28 MM 28 62 60 40 30 0.6 3 42 48 M6 45 MM
4 DELIXIN-LOK PCLPA 30 MM 30 62 60 40 30 0.6 3 42 48 M6 45 MM
GROUP 5
5 DELIXIN-LOK PCLPA 32 MM 32 74 70 52 30 0.8 3 58 64 M6 60 MM
5 DELIXIN-LOK PCLPA 33.7 MM 33.7 74 70 52 30 0.8 3 58 64 M6 60 MM
5 DELIXIN-LOK PCLPA 35 MM 35 74 70 52 30 0.8 3 58 64 M6 60 MM
5 DELIXIN-LOK PCLPA 38 MM 38 74 70 52 30 0.8 3 58 64 M6 60 MM
5 DELIXIN-LOK PCLPA 40 MM 40 74 70 52 30 0.8 3 58 64 M6 60 MM
5 DELIXIN-LOK PCLPA 42 MM 42 74 70 52 30 0.8 3 58 64 M6 60 MM
GROUP 6
6 DELIXIN-LOK PCLPA 44.5 MM 44.5 88 86 66 30 0.8 3 66 72 M6 70 MM
6 DELIXIN-LOK PCLPA 48.3 MM 48.3 88 86 66 30 0.8 3 66 72 M6 70 MM
6 DELIXIN-LOK PCLPA 50.8 MM 50.8 88 86 66 30 0.8 3 66 72 M6 70 MM
GROUP 7
7 DELIXIN-LOK PCLPA 60.3 MM 60.3 122 118 94 30 0.8 3 or 5 93 99 or 103 M6 100 MM
7 DELIXIN-LOK PCLPA 63.5 MM 63.5 122 118 94 30 0.8 3 or 5 93 99 or 103 M6 100 MM
7 DELIXIN-LOK PCLPA 76.1 MM 76.1 122 118 94 30




Superior Vibration Damping for Secure Tube Support

Our Polyamide Tube Clamps are engineered to deliver exceptional vibration damping, minimizing movement and noise in hydraulic and pneumatic installations. This ensures stable operation and prolongs the life of both the clamp and the tubes being secured, making them ideal for high-pressure, dynamic systems.


Reliable Fire Resistance and Corrosion Protection

Constructed from self-extinguishing PA6 polyamide and galvanized steel plates, these clamps provide enhanced safety by meeting UL94-V2 standards and resisting environmental corrosion. They maintain structural integrity in harsh industrial environments where fluid leaks and high temperatures are a concern.

FAQ's of Polyamide Tube Clamp:


Q: How are Polyamide Tube Clamps typically installed?

A: Polyamide Tube Clamps are bolt-mounted using standard M6, M8, or M10 hardware, depending on the model and application. The clamps are designed for quick installation, allowing users to securely fasten them to equipment or mounting structures, ensuring stable support for tubes or pipes.

Q: What applications are suitable for these tube clamps?

A: These tube clamps are ideal for hydraulic and pneumatic systems, supporting both hoses and pipes. They are commonly used in industrial machinery, manufacturing plants, process lines, and fluid handling systems requiring reliable, high-pressure tube clamping.

Q: When should I use the heavy series versus the standard series clamp?

A: The standard series is suitable for regular-duty applications, while the heavy series is recommended for high-pressure systems or where strong vibration damping is needed. Choose the series based on operating pressure, tube size, and mechanical stresses present in the installation.

Q: Where can these tube clamps be used considering their temperature and corrosion resistance?

A: Thanks to their wide temperature range (-30C to +120C) and excellent corrosion resistance, these clamps are suited for both indoor and outdoor use in demanding environments, including marine, chemical, and food processing industries.

Q: What is the process for reusing a Polyamide Tube Clamp?

A: To reuse the clamp, simply unbolt it, release the tube or pipe, and inspect the clamp for wear or damage. If intact, it can be reinstalled with new or existing mounting hardware, providing cost-effective and sustainable tube management.

Q: How does the polyamide material benefit tube clamping applications?

A: Polyamide (PA6) offers excellent tensile strength, self-extinguishing properties, and outstanding vibration damping, making it ideal for applications where safety, durability, and performance are critical. It is also resistant to various chemicals and environmental factors.

Q: What customization options are available for size and model?

A: The clamps can accommodate outer tube diameters from 6 mm to 50 mm, with customizable length, wall thickness, and plate size as per customer specifications. This flexibility ensures compatibility with a wide range of pipe and tube configurations.
