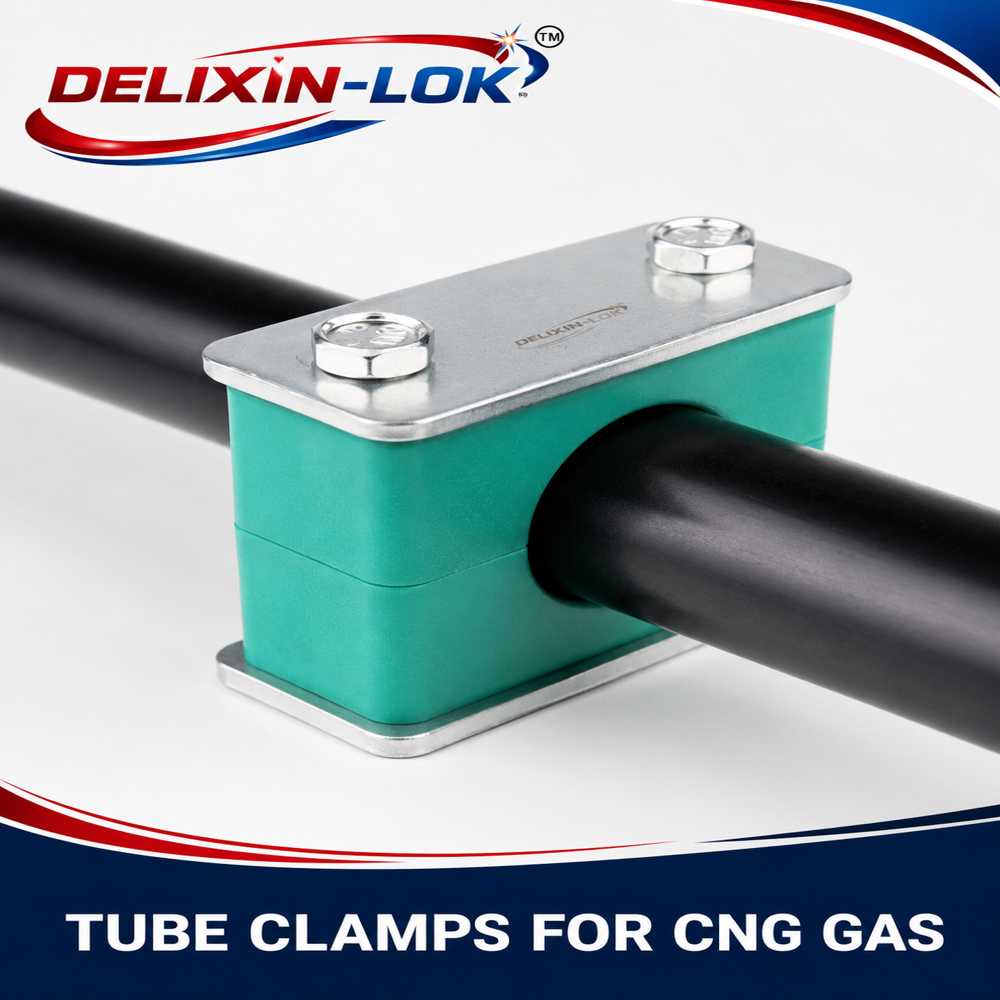

Tube Support Clamps

Name: Tube Support Clamps
Brand: DELIXIN ENTERPRISES
Price: 55.0 INR
Availability: InStock

Price 55.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Tube Support Clamps Specification

Product Type
Tube Support Clamp

Material
Polypropylene Body with Steel Plates

Type
Standard Duty Clamp

Shape
Rectangular/Block

Technique
Injection Moulded with Machined Metal Plates

Surface Treatment
Plated/Galvanized Metal Plates

Standard
DIN 3015

Outer Diameter
Custom options available

Length
As per requirement

Inside Diameter
Customizable as per application

Wall Thickness
Robust, as per DIN 3015

Tensile Strength
Designed for industrial and CNG applications

Grade
Industrial Grade

Size
Varies (available for multiple tube diameters)

Color
Green Body with Silver Plates

Vibration Resistance
High, minimizes vibration and noise

Working Temperature
-30C to +80C

Compatibility
Suitable for both metric and imperial tubes

Reusability
Yes, for maintenance/replacement

Clamp Body Hardness
Shore D 705

Corrosion Resistance
Excellent, for both indoor and outdoor installation

Flammability Rating
UL94 V-2 or as specified

Mounting Style
Base Plate Mounting

Bolt Material
Zinc Plated Steel for rust protection

Application
CNG Gas Tubing, Hydraulic & Pneumatic Lines, Industrial Piping

About Tube Support Clamps

Enhance system reliability
Resist many chemicals and corrosives
Absorb shock and vibration
Reduce stress on system components
Make system easily accessible for installation and maintenance
Resist ultraviolet light

Brand	DELIXIN-LOK
Equivalent To	STAUFF , SWAGELOK, PARKER
Temperature Rating	22 to 194F (30 to 90C)
Sizes	6 MM TO 76.1 MM
Configurations	Single, stacking, twin
Materials of Construction	CS , SS 304 , SS316
Hex head support bolts	CS , SS 304 , SS316
Cover plate	CS , SS 304 , SS316
Support body	Virgin polypropylene
Lock plate	CS , SS 304 , SS316
7/16 in. or 10 mm hex head stacking bolts	CS , SS 304 , SS316
Weld nut	CS , SS 304 , SS316
Weld plate	CS , SS 304 , SS316

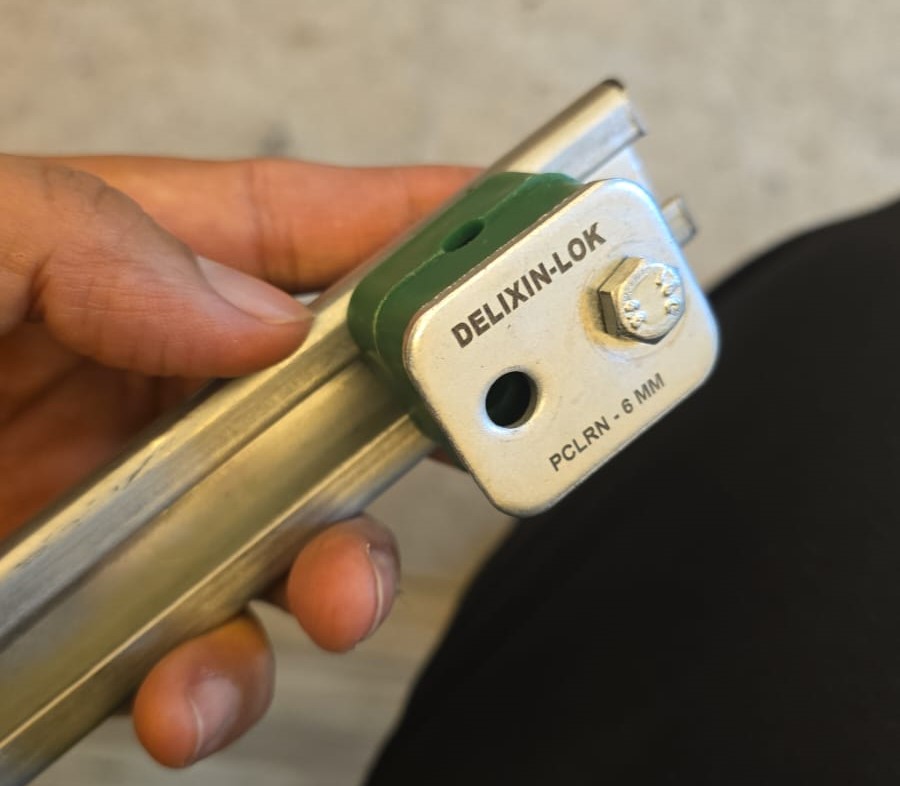

Mounting rail	CS , SS 304 , SS316
Rail nut	CS , SS 304 , SS316
10 Strut nut	CS , SS 304 , SS316

High Vibration and Noise Reduction

These Tube Support Clamps offer superior vibration resistance, effectively reducing operational noise and structural stress in piping systems. Their robust polypropylene body combined with steel mounting plates ensures long-lasting stability, making them a preferred choice in CNG, hydraulic, and industrial applications.

Adaptability and Ease of Installation

Designed for easy base plate mounting, the clamps are available in various sizes to accommodate both metric and imperial tubes. Their reusability allows for quick maintenance or system updates, making them suitable for dynamic environments where piping configurations evolve.

Durability and Safety Assurance

Built with industrial-grade materials, these clamps provide outstanding corrosion resistance, a high flammability rating, and reliable tensile strength. They are engineered to withstand the rigors of both indoor and outdoor use, ensuring safety and long-term performance even in challenging settings.

FAQ's of Tube Support Clamps:

Q: How do Tube Support Clamps help minimize vibration and noise in piping systems?

A: The clamps utilize a robust polypropylene body and secure steel plates to firmly hold pipes in place, reducing movement and dampening vibrational energy. This design not only decreases operational noise but also helps extend the lifespan of the piping network.

Q: What applications are these Tube Support Clamps suitable for?

A: These clamps are ideal for CNG gas tubing, hydraulic and pneumatic lines, and a variety of industrial piping systems. Their versatile design allows for use in both indoor and outdoor installations across multiple industries.

Q: When should these clamps be considered during system installation or maintenance?

A: Tube Support Clamps should be installed during the initial piping setup to ensure stable support and vibration reduction. They are also designed to be reusable, enabling convenient removal and reintegration during routine maintenance or system upgrades.

Q: Where can these clamps be installed-are they suitable for outdoor use?

A: Yes, the clamps are engineered to deliver excellent corrosion resistance, making them suitable for both indoor and outdoor installations. Their durable construction withstands challenging environments without compromising performance.

Q: What benefits does the zinc-plated steel bolt and steel plates provide?

A: Zinc plating offers enhanced rust and corrosion protection for the steel hardware, contributing to the clamps' long-term durability and reliability, especially in environments exposed to moisture or chemicals.

Q: How is the inner diameter or clamp size determined for specific applications?

A: The inner diameter and overall size of the clamp can be customized to fit the tube's dimensions, whether metric or imperial. This ensures a secure fit and optimal performance regardless of the application requirements.

Q: What makes these clamps compliant with safety and technical standards?

A: These Tube Support Clamps adhere to DIN 3015 standards and meet UL94 V-2 flammability ratings, ensuring safety, robust material quality, and performance consistency in industrial settings.
