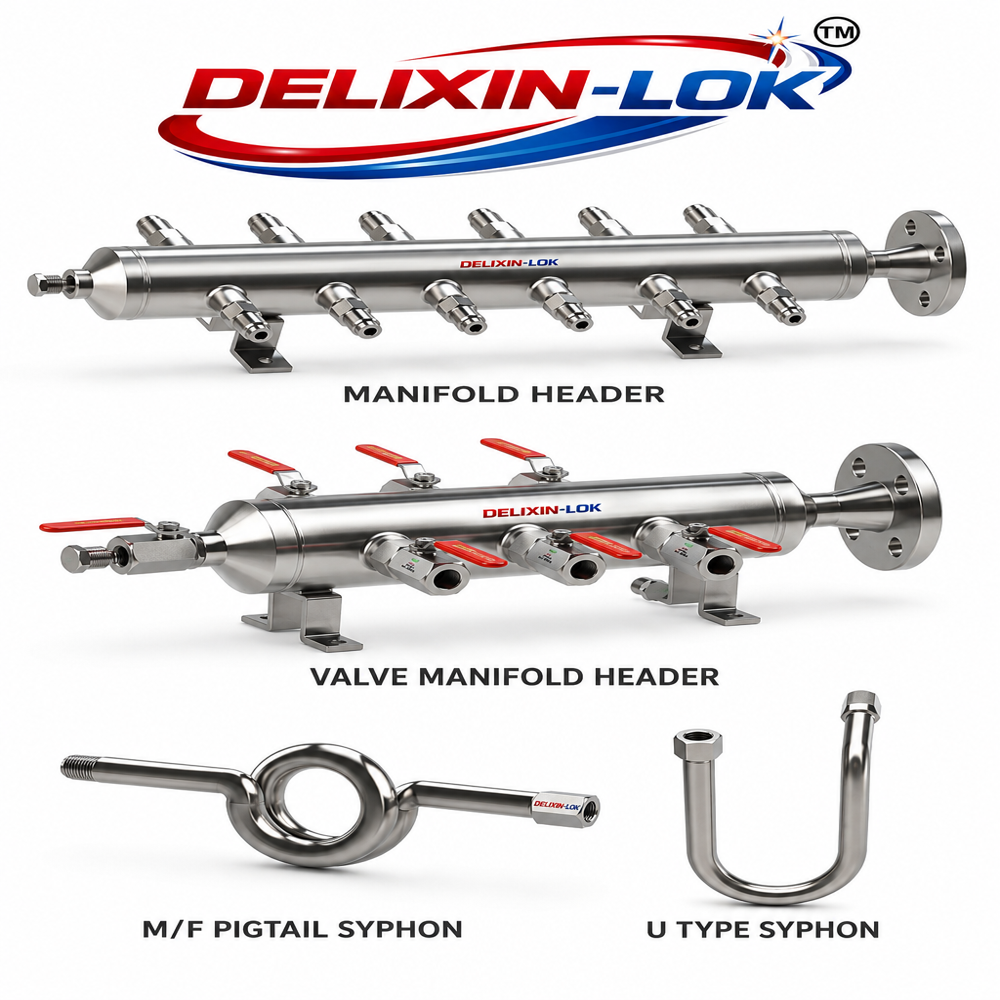

Gauge Syphon

Name: Gauge Syphon
Brand: DELIXIN ENTERPRISES
Price: 700.0 INR
Availability: InStock

Price 700.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Gauge Syphon Specification

Control System
Passive mechanical isolation

Features
Corrosion resistant, Durable construction, Easy installation, Protects instruments from direct exposure to high temperature

Connection Type
Threaded (NPT/BSP), Welded

Material
Stainless Steel, Carbon Steel, Brass

Application
Used to protect pressure gauges from the effects of hot pressure media such as steam

Structure
U-shape bent tube

Sealing
Threaded or welded connections

Type
U-Type Syphon

Pressure
Up to 6000 psi (depending on the model and material)

Media
Steam, Air, Gases, Liquids

Port Size
1/4 to 1 (Custom sizes available)

Temperature
Up to 400C depending on material

Shape Options
U-type, Q-type, Pigtail type

Applicable Standards
ASME B31.1, ASTM A106/A105

End Connection
Female or Male threads, Flanged

Product Certification
Material Test Certificate (MTC) available

Wall Thickness
Standard Schedule 40; other schedules on request

Finish
Polished or matt (customized as required)

Packing
Bubble wrap/Carton box packing

About Gauge Syphon

Syphon Pipe/ Tube/ Pump Manufacturer in india at discounted price

Gauge Syphon or civilian syphons are used to transfer stormwater or sewage water under the stream and in other depressions in the ground. syphon manufacturers recommend the use of these due to their ability to protect the pressure measuring instruments from pulsation in the environment and excessive heating. Pressure Gauge Syphon acts like a cooling element for fluids in measuring the pressure. High Pressure Syphon is used to directly connect pressure measuring devices and shut off devices underneath. U Type Umbrella Syphon is used in horizontal application since it allows the vapours to form and condense inside it thus preventing the vapours direct contact with the pressure instrument.

During the use of U Type Syphon Male X Male the syphon should be filled with water to separate the concentrate and medium of the pressure medium. This Male X Female Syphon, therefore, avoids direct contact of the fluid with external media. Thus protecting the pressure sensor. They are available in various types. Q Type Syphon being one of them. Male X Female Q Type Syphon is installed between pressure instrument and processes and is filled with fluid that functions as heat dispensation and reduces the process pulsation. Male X Male Pigtail Q Type Syphon is used for vertical installation and is designed to protect the steam pressure gauge from coming in contact with elevated pressure temperature.

BRAND NAME	DELIXIN-LOK
SIZE	1/8" TO 1"
CONNECTION	THREADED, TUBE END, SOCKET WELD END, FLANGE END
THREADS	NPT, BSPP, BSPT, METRIC, JIC, UNF
TYPE	U-TYPE, U-TYPE UMBRELLA, Q-TYPE PIGTAIL
PIPE SCH	SCH 40, SCH 80, SCH 160
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI
PIPE TYPE	SEAMLESS, WELDED
MATERIAL	SS 316, SS 304, BRASS, SS 316 TI, CS, COPPER, SUPER DUPLEX, INCONEL, DUPLEX, HASTELLOY, MONEL, ALLOY 20, SMO 254, 904L , TITANIUM & ALL OTHER ALLOYS

Versatile Design and Application

Available in U-type, Q-type, and Pigtail forms, the Gauge Syphon adapts to various installation requirements. It accommodates port sizes from 1/4 to 1 inch with custom sizes upon request, making it suitable for steam, air, gases, and liquid services in industrial systems. Users enjoy multiple end connections-threaded, flanged, or welded-tailored for seamless integration into new or existing setups.

Quality, Safety and Standards Compliance

Manufactured from stainless steel, carbon steel, or brass, the syphon is built to withstand harsh operating environments. It complies with industry standards such as ASME B31.1 and ASTM A106/A105, assuring quality and operational reliability. Material Test Certificates (MTC) are provided for verification, and every unit is packed securely in bubble wrap and cartons to prevent transit damage.

Protects and Prolongs Equipment Life

By isolating pressure gauges from high-temperature or pulsating media, the Gauge Syphon passively diverts heat away from the instrument. This mechanical isolation prevents damage and extends the service life of your gauges, reducing downtime and maintenance costs. The corrosion-resistant and durable construction offers long-term reliability for a wide range of industrial applications.

FAQ's of Gauge Syphon:

Q: How does a Gauge Syphon protect pressure gauges in high-temperature applications?

A: A Gauge Syphon acts as a barrier between the pressure gauge and hot media like steam by allowing the media to cool before reaching the instrument. This prevents direct exposure to high temperatures, reducing the risk of damage and ensuring accurate readings.

Q: What are the benefits of choosing customized finishes or wall thicknesses for my gauge syphon?

A: Opting for customized finishes, such as polished or matt, enhances corrosion resistance and aesthetic appeal, while selecting appropriate wall thicknesses like Schedule 40-or other schedules upon request-enables compatibility with your system's pressure and temperature requirements.

Q: When should I use a U-type, Q-type, or Pigtail type syphon?

A: The choice of syphon shape-U-type, Q-type, or Pigtail-depends on installation space, required cooling capacity, and specific piping layouts. For instance, pigtail types are often preferred for compact installations, while U-types are standard in general applications.

Q: Where can Gauge Syphons be installed, and for which media are they suitable?

A: Gauge Syphons can be installed in pipelines and systems handling steam, air, gases, or liquids. They are ideal for industrial environments that require gauges to operate safely in high-pressure and high-temperature conditions.

Q: What is the process for installing a Gauge Syphon with threaded or flanged connections?

A: Installation involves connecting the syphon's female or male threads or flanges to the gauge and the process line. The syphon forms a loop or coil before the gauge, ensuring a water seal while providing easy integration with NPT/BSP threads, welded, or flanged connections as needed.

Q: How does using a Gauge Syphon benefit my overall control system?

A: The syphon delivers passive mechanical isolation that protects gauges from thermal shock and pressure surges, enhancing operational safety and equipment longevity throughout your control system.

Q: What standards and certifications are Gauge Syphons manufactured to meet?

A: Gauge Syphons are produced following ASME B31.1 and ASTM A106/A105 standards and can be supplied with Material Test Certificates (MTC) for verification, ensuring quality and compliance with industrial norms.
