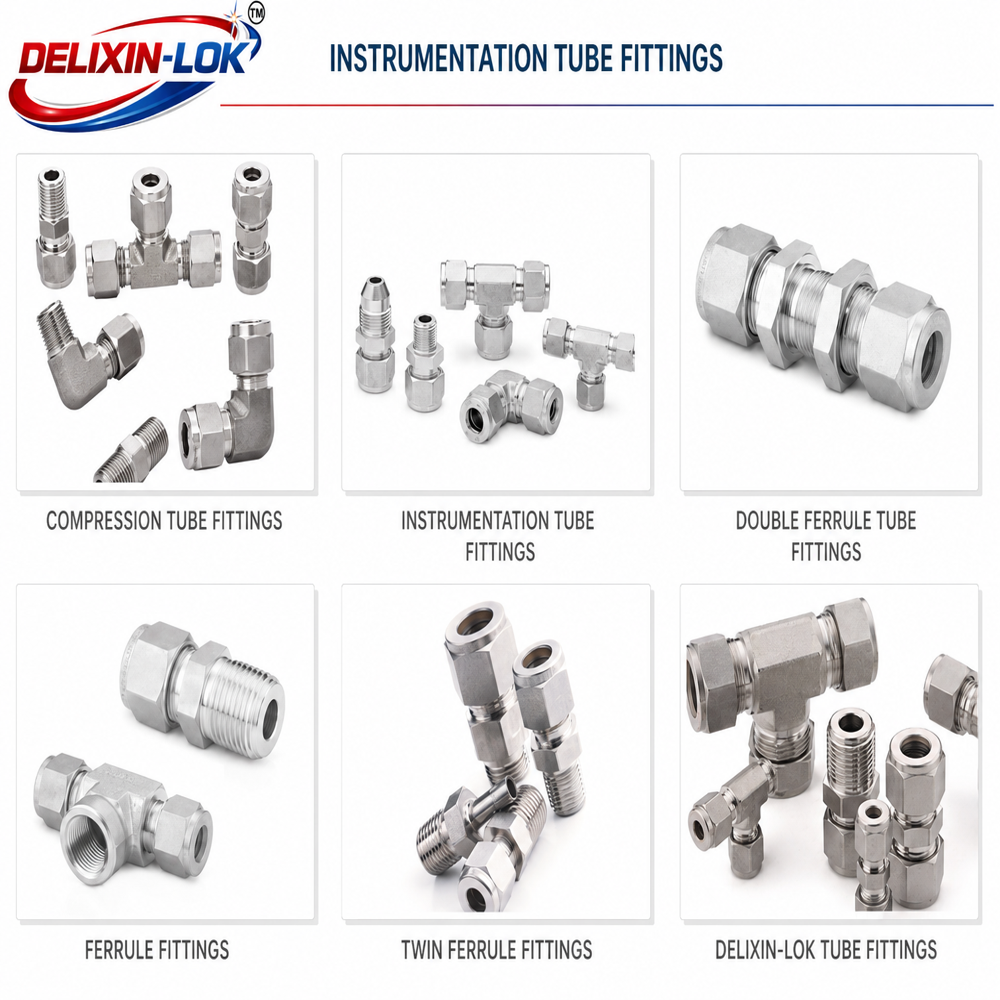

INSTRUMENTATION TUBE FITTINGS

Price 400.00 INR/ Unit

Get a Price/Quote

MOQ : 100 Units

INSTRUMENTATION TUBE FITTINGS Specification

Product Type
Instrumentation Tube Fittings

Material
Stainless Steel (SS 304, SS 316), Brass

Type
Compression, Double Ferrule, Single Ferrule, Twin Ferrule, Instrumentation Adapter, Tee, Elbow, Straight

Shape
Straight, Elbow, Tee, Bulkhead, Union

Technique
Precision Machined

Surface Treatment
Passivated, Electro-polished

Standard
ASTM, DIN, JIS, ISO, ANSI

Outer Diameter
1/16 to 2 (varies as per requirement)

Length
Standard and Custom Lengths

Inside Diameter
1/16 to 2 (varies by fitting type)

Wall Thickness
Between 0.5mm to 3mm (custom as required)

Tensile Strength
Min. 515 MPa (for SS 316)

Grade
SS 304, SS 316, Brass, Custom Alloys

Size
Metric: 3mm to 50mm, Imperial: 1/16 to 2

Color
Silver, Metallic Finish

Leakage
Zero Leakage under recommended usage

Corrosion Resistance
High, suitable for harsh environments

Media Compatibility
Suitable for Gas & Liquid lines

End Connection
Male, Female, Tube-to-Tube, Tube-to-Pipe, Adapter

Temperature Range
-20C to 400C (depending on material)

Installation
Easy, no special tools required

Application
Chemical, Petrochemical, Oil & Gas, Power Plants, Pharmaceuticals

Connection Type
Threaded / Compression

Reusable
Yes, can be assembled and disassembled multiple times

Pressure Rating
Up to 6000 psi (varies by size/type)

About INSTRUMENTATION TUBE FITTINGS

Types	Tube to Female, Instrument Pipe Fittings, Tube to Union, Accessories, Tube to Male
Equivalent To	DK-LOK, PARKER, SWAGELOK, HOKE
Standard	ASME SA-479, Type 304-SS, BS 970 304S11, DIN 4401, ASTM A276 Type 304
Sizes	1/8 to 2 and 3mm to 50mm
Ends	Threaded, Welding, JIC
Pressure Rating	1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi
Threads	NPT , BSPT, BSPP
Specification	Items Made from Hex ASTM A276; Items made from Round Bar- ASTM A182
HS CODE	73072900

Custom Size Compression Fittings Manufacturers, DELIXIN-LOK tube fittings come in a wide range of shapes and types including:

Adapter Fittings transition tube to threaded or weld fittings. Types include:

Weld: Pipe Socket Weld, Tube Socket Weld and Butt Weld
Threaded: ISO/BSP, NPT, OSM, SAE and OSC
Flare Fittings: (JIC Fittings) AN Fittings

Special Purpose Fittings: calibration, dielectric, special orifice, bore-thru, and mud dauber fittings. DELIXIN-LOK manufactures a wide range of fittings in special end connection, sizes and configurations.
Shapes: adapters, Male and female connectors, unions, reducers, tees, elbows, caps, crosses, plugs, and bulkhead fittings.

HIGH PRESSURE TUBE FITTINGS
LOW PRESSURE TUBE FITTINGS
3000 PSI TUBE FITTINGS
6000 PSI TUBE FITTINGS
10000 PSI TUBE FITTINGS
15000 PSI TUBE FITTINGS
20000 PSI TUBE FITTINGS
400 BAR TUBE FITTINGS

Instrumentation Tube Fittings
Double Ferrule Compression Tube Fittings

1. Union Fittings

Union Tube Tube
Reducing Union Tube Reduced Tube
Bulkhead Union
Union Elbow 90
Union Elbow 45
Bulkhead Union Elbow
Union Tee
Reducing Union Tee
Union Cross
Reducing Union Cross

2. Male Connector Fittings

Male Connector Tube Male Thread
Bulkhead Male Connector
Male Elbow 90
Male Elbow 45
Positionable Male Elbow
Bulkhead Male Elbow
Male Run Tee
Male Branch Tee
Positionable Male Run Tee
Positionable Male Branch Tee
Male Adapter
Bulkhead Male Adapter
Male Elbow Adapter
Male Tee Adapter
Male Branch Adapter
Male Run Adapter

3. Female Connector Fittings

Female Connector Tube Female Thread
Bulkhead Female Connector
Female Elbow 90
Female Elbow 45
Female Run Tee
Female Branch Tee
Female Adapter
Bulkhead Female Adapter
Female Elbow Adapter
Female Tee Adapter
Female Branch Adapter
Female Run Adapter

4. Reducing Fittings

Reducing Union
Reducing Connector
Reducing Union Elbow
Reducing Union Tee
Reducing Union Cross
Reducing Male Connector
Reducing Female Connector
Reducing Adapter
Reducer Tube Stub Tube Fitting
Bulkhead Reducer

5. Bulkhead Fittings

Bulkhead Union
Bulkhead Reducing Union
Bulkhead Union Elbow
Bulkhead Male Connector
Bulkhead Female Connector
Bulkhead Male Elbow
Bulkhead Female Elbow
Bulkhead Male Adapter
Bulkhead Female Adapter

6. Weld-End Fittings

Socket Weld Tube Connector
Socket Weld Tube Elbow
Tube Socket Weld Adapter
Tube Butt Weld Adapter
Tube Weld Connector
Tube Weld Elbow
Tube Weld Tee
Male Pipe Weld Connector
Female Pipe Weld Connector
Bulkhead Weld Connector

7. Special Connectors

O-Seal Male Connector
SAE/MS Straight Thread Connector
Positionable O-Seal Male Connector
Thermocouple Male Connector
Bored-Through Male Connector
Thermocouple Female Connector
Bored-Through Female Connector
Extended Male Connector
Extended Female Connector
Banjo Connector

9. Tube Closure Products

Tube Cap
Tube Plug
Port Plug
Hex Head Plug
Bleed Plug
Thermocouple Cap
Protective Tube Cap

10. Ferrules, Nuts and Replacement Components

Front Ferrule
Back Ferrule
Tube Nut
Female Nut
Nut and Ferrule Set
Front and Back Ferrule Set
Tube Insert
Bulkhead Locknut
Lock Washer
Replacement Component Kit

11. Installation Accessories

Gap Inspection Gauge
Manual Pre-Swaging Tool
Hydraulic Pre-Swaging Unit
Tube Depth-Marking Tool
Tube Deburring Tool
Tube Cutter
Tube Bender
Tube Straightener
Installation Spanner
Ferrule Replacement Tool

Connection options

Tube OD Tube OD
Tube OD Male NPT
Tube OD Female NPT
Tube OD Male BSPP
Tube OD Female BSPP
Tube OD Male BSPT
Tube OD Female BSPT
Tube OD SAE Straight Thread
Tube OD Socket Weld
Tube OD Butt Weld

Available sizes

Metric Tube OD: 3 mm to 38 mm
Fractional Tube OD: 1/16 to 1
Thread sizes: 1/8 to 1
Larger and custom sizes can be manufactured against an approved drawing.

Available materials

SS316
SS316L
SS304
Brass
Carbon Steel
Duplex Stainless Steel
Super Duplex Stainless Steel
Monel
Inconel
Hastelloy
Titanium
SMO 254

Precision Sealing for Demanding Environments

Designed for zero leakage under recommended usage, our tube fittings ensure secure connections even in highly demanding industries. Manufactured from high-strength materials like SS 304, SS 316, and brass, they undergo passivation and electro-polishing for increased durability and corrosion resistance. From chemical plants to pharmaceutical lines, they provide superior safety and reliability.

Versatile, Easy Installation & Reusability

These instrumentation tube fittings can be installed quickly without special tools, making assembly and maintenance more efficient. The double, single, or twin ferrule types allow for repeated disassembly and reassembly while retaining performance, saving you time and reducing operational costs.

FAQ's of Instrumentation Tube Fittings:

Q: How do instrumentation tube fittings ensure zero leakage?

A: Instrumentation tube fittings use precision-machined ferrules and robust connection types (compression, threaded) to create a gas- and liquid-tight seal. When installed according to manufacturer recommendations, these components are rigorously tested to provide zero leakage results, even at pressures up to 6000 psi.

Q: What media are these fittings compatible with?

A: Our tube fittings are suitable for both gas and liquid lines, including a wide range of chemicals, petrochemical products, oils, industrial gases, and more. Their high corrosion resistance and durable material options (SS 304, SS 316, brass) make them ideal for aggressive and challenging process environments.

Q: When should I choose stainless steel versus brass fittings?

A: Stainless steel (SS 304/316) fittings are recommended for environments exposed to corrosive chemicals, high pressures, and extreme temperatures, while brass is suitable for less aggressive media and environments where cost-effectiveness is desired. The material choice depends on the specific application requirements and compatibility with the process media.

Q: Where are these tube fittings applied most commonly?

A: Instrumentation tube fittings are extensively used in chemical, petrochemical, oil & gas, power generation, and pharmaceutical industries. They connect instrumentation lines, process controls, and measurement equipment wherever reliable, leak-free performance is essential.

Q: What is the installation process for these fittings?

A: Installation is straightforward and does not require any special tools. Simply insert the tube into the fitting, tighten according to manufacturer instructions, and the ferrule system provides a secure mechanical grip and seal. These fittings can be assembled and disassembled multiple times.

Q: Are custom sizes and materials available for specific requirements?

A: Yes, we offer a wide range of standard metric (3mm to 50mm) and imperial (1/16 to 2 inch) sizes, and can manufacture custom sizes, wall thicknesses, and materials to meet your specific project needs while complying with industry standards.

Q: What are the main benefits of using double ferrule fittings?

A: Double ferrule fittings provide enhanced sealing capability, resistance to vibration and thermal cycling, and improved mechanical strength. They maintain integrity after repeated assembly, making them a preferred choice for critical and high-value instrumentation applications.
