Delixin-lok Tube Fittings

Name: Delixin-lok Tube Fittings
Brand: DELIXIN ENTERPRISES
Price: 840.0 INR
Availability: InStock

Price 840.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Delixin-lok Tube Fittings Specification

Product Type
Tube Fitting

Material
Stainless Steel

Type
Union Cross

Shape
Cross

Technique
Precision Machined

Surface Treatment
Polished

Standard
DIN/ASTM/ISO

Outer Diameter
1/8 to 2 (custom on request)

Length
Standard as per fitting design

Inside Diameter
Customizable as per tubing size

Wall Thickness
Varies as per size

Tensile Strength
High Tensile (up to 550 MPa)

Grade
SS 304/316/316L

Size
1/8 to 2 (custom sizes available)

Color
Metallic Silver

Connection Type
Double Ferrule Compression

Corrosion Resistance
Excellent

Temperature Range
-196C to 400C

Pressure Rating
Up to 6000 psi (varies by size and material)

Application
Instrumentation, Gas and Liquid Transfer

Leak Proof
Yes

Packaging
Export Standard Packing

About Delixin-lok Tube Fittings

Types	Tube to Female, Instrument Pipe Fittings, Tube to Union, Accessories, Tube to Male
Equivalent To	DK-LOK, PARKER, SWAGELOK, HOKE
Standard	ASME SA-479, Type 304-SS, BS 970 304S11, DIN 4401, ASTM A276 Type 304
Sizes	1/8 to 2 and 3mm to 50mm
Ends	Threaded, Welding, JIC
Pressure Rating	1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi
Threads	NPT , BSPT, BSPP
Specification	Items Made from Hex ASTM A276; Items made from Round Bar- ASTM A182
HS CODE	73072900

Custom Size Compression Fittings Manufacturers, DELIXIN-LOK tube fittings come in a wide range of shapes and types including:

Adapter Fittings transition tube to threaded or weld fittings. Types include:

Weld: Pipe Socket Weld, Tube Socket Weld and Butt Weld
Threaded: ISO/BSP, NPT, OSM, SAE and OSC
Flare Fittings: (JIC Fittings) AN Fittings

Special Purpose Fittings: calibration, dielectric, special orifice, bore-thru, and mud dauber fittings. DELIXIN-LOK manufactures a wide range of fittings in special end connection, sizes and configurations.
Shapes: adapters, Male and female connectors, unions, reducers, tees, elbows, caps, crosses, plugs, and bulkhead fittings.

HIGH PRESSURE TUBE FITTINGS
LOW PRESSURE TUBE FITTINGS
3000 PSI TUBE FITTINGS
6000 PSI TUBE FITTINGS
10000 PSI TUBE FITTINGS
15000 PSI TUBE FITTINGS
20000 PSI TUBE FITTINGS
400 BAR TUBE FITTINGS

Instrumentation Tube Fittings
Double Ferrule Compression Tube Fittings

1. Union Fittings

Union Tube Tube
Reducing Union Tube Reduced Tube
Bulkhead Union
Union Elbow 90
Union Elbow 45
Bulkhead Union Elbow
Union Tee
Reducing Union Tee

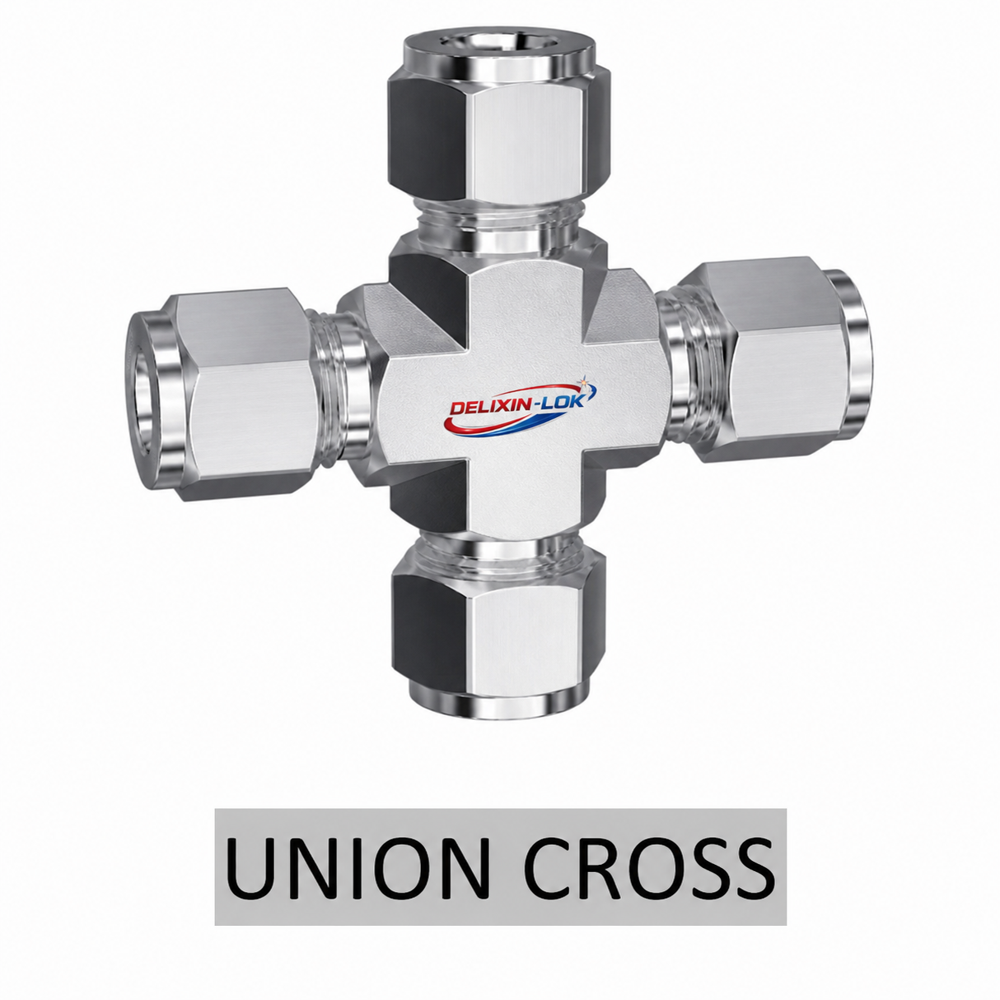

Union Cross
Reducing Union Cross

2. Male Connector Fittings

Male Connector Tube Male Thread

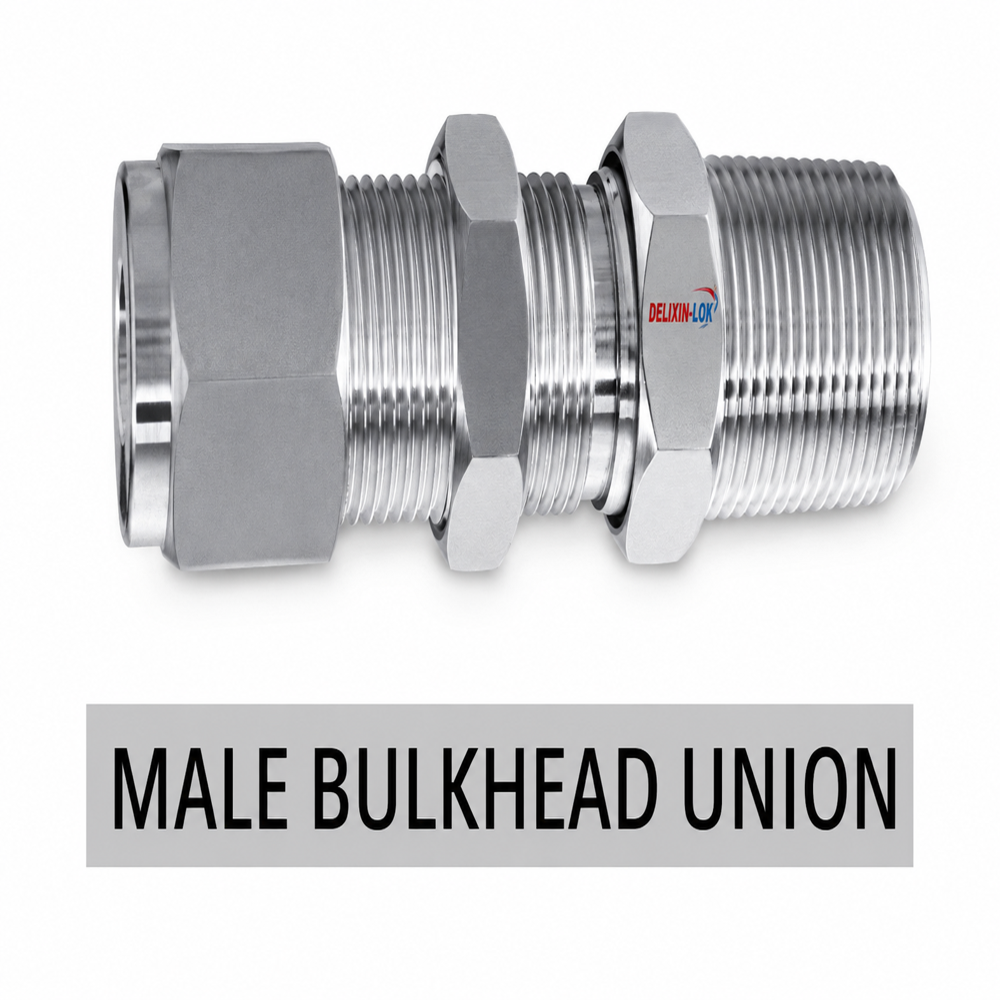

Bulkhead Male Connector

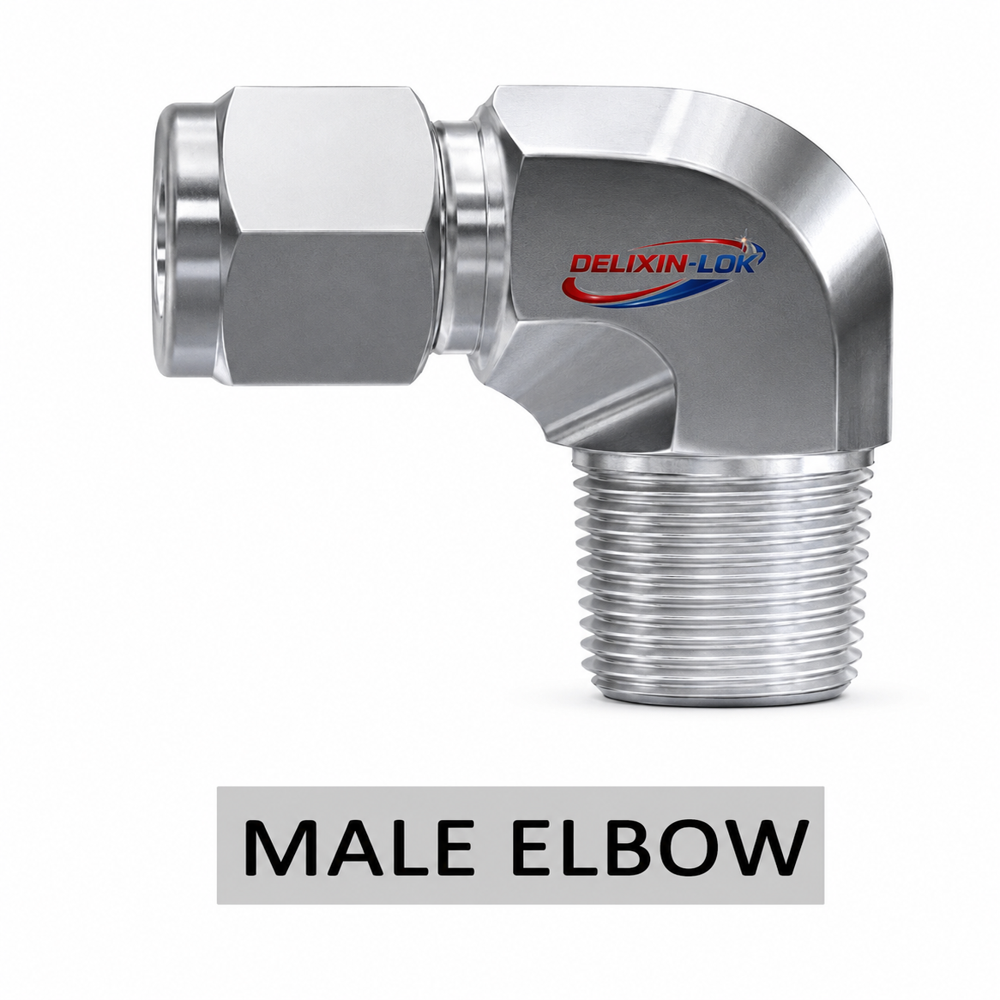

Male Elbow 90
Male Elbow 45
Positionable Male Elbow
Bulkhead Male Elbow

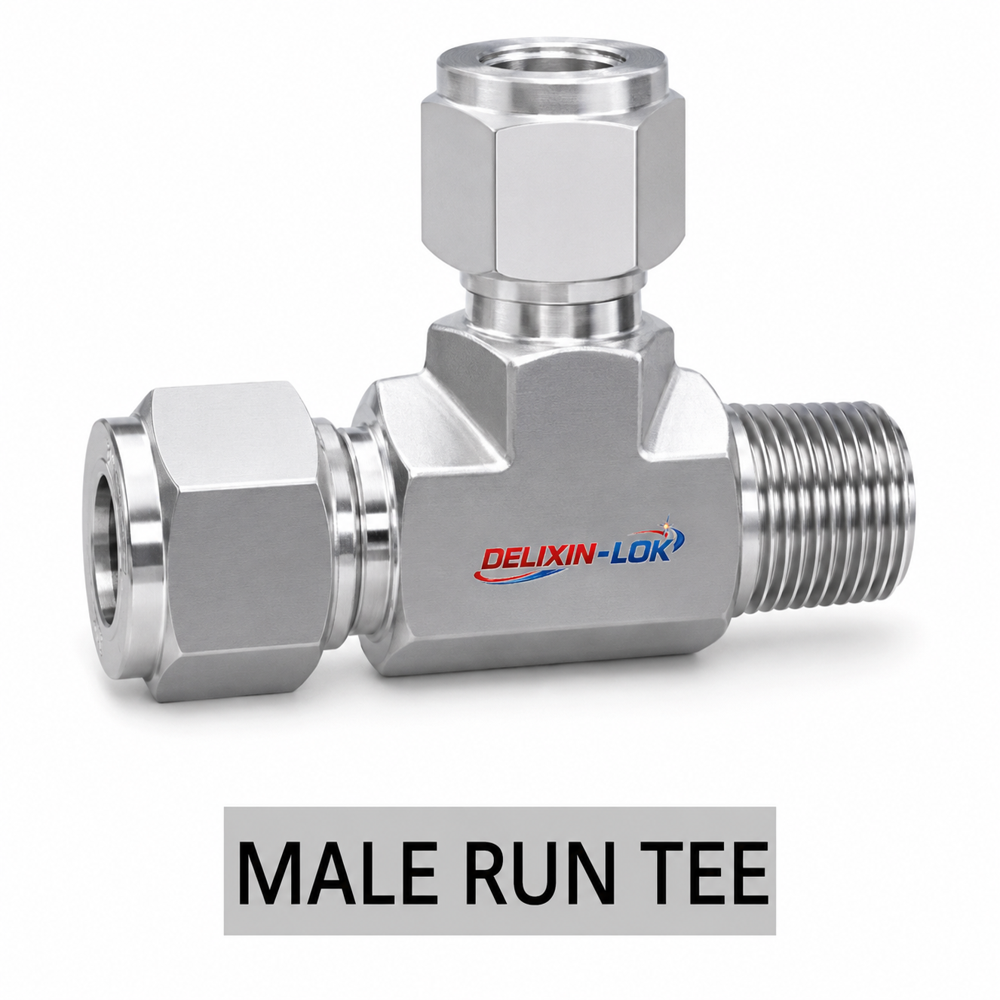

Male Run Tee
Male Branch Tee
Positionable Male Run Tee
Positionable Male Branch Tee
Male Adapter
Bulkhead Male Adapter
Male Elbow Adapter
Male Tee Adapter
Male Branch Adapter
Male Run Adapter

3. Female Connector Fittings

Female Connector Tube Female Thread
Bulkhead Female Connector
Female Elbow 90
Female Elbow 45
Female Run Tee
Female Branch Tee
Female Adapter
Bulkhead Female Adapter
Female Elbow Adapter
Female Tee Adapter
Female Branch Adapter
Female Run Adapter

4. Reducing Fittings

Reducing Union
Reducing Connector
Reducing Union Elbow
Reducing Union Tee
Reducing Union Cross
Reducing Male Connector
Reducing Female Connector
Reducing Adapter
Reducer Tube Stub Tube Fitting
Bulkhead Reducer

5. Bulkhead Fittings

Bulkhead Union
Bulkhead Reducing Union
Bulkhead Union Elbow
Bulkhead Male Connector
Bulkhead Female Connector
Bulkhead Male Elbow
Bulkhead Female Elbow
Bulkhead Male Adapter
Bulkhead Female Adapter

6. Weld-End Fittings

Socket Weld Tube Connector
Socket Weld Tube Elbow
Tube Socket Weld Adapter
Tube Butt Weld Adapter
Tube Weld Connector
Tube Weld Elbow
Tube Weld Tee
Male Pipe Weld Connector
Female Pipe Weld Connector
Bulkhead Weld Connector

7. Special Connectors

O-Seal Male Connector
SAE/MS Straight Thread Connector
Positionable O-Seal Male Connector
Thermocouple Male Connector
Bored-Through Male Connector
Thermocouple Female Connector
Bored-Through Female Connector
Extended Male Connector
Extended Female Connector
Banjo Connector

9. Tube Closure Products

Tube Cap
Tube Plug
Port Plug
Hex Head Plug
Bleed Plug
Thermocouple Cap
Protective Tube Cap

10. Ferrules, Nuts and Replacement Components

Front Ferrule
Back Ferrule
Tube Nut
Female Nut
Nut and Ferrule Set
Front and Back Ferrule Set
Tube Insert
Bulkhead Locknut
Lock Washer
Replacement Component Kit

11. Installation Accessories

Gap Inspection Gauge
Manual Pre-Swaging Tool
Hydraulic Pre-Swaging Unit
Tube Depth-Marking Tool
Tube Deburring Tool
Tube Cutter
Tube Bender
Tube Straightener
Installation Spanner
Ferrule Replacement Tool

Connection options

Tube OD Tube OD
Tube OD Male NPT
Tube OD Female NPT
Tube OD Male BSPP
Tube OD Female BSPP
Tube OD Male BSPT
Tube OD Female BSPT
Tube OD SAE Straight Thread
Tube OD Socket Weld
Tube OD Butt Weld

Available sizes

Metric Tube OD: 3 mm to 38 mm
Fractional Tube OD: 1/16 to 1
Thread sizes: 1/8 to 1
Larger and custom sizes can be manufactured against an approved drawing.

Available materials

SS316
SS316L
SS304
Brass
Carbon Steel
Duplex Stainless Steel
Super Duplex Stainless Steel
Monel
Inconel
Hastelloy
Titanium
SMO 254

Precision Sealing for Demanding Environments

Designed for zero leakage under recommended usage, our tube fittings ensure secure connections even in highly demanding industries. Manufactured from high-strength materials like SS 304, SS 316, and brass, they undergo passivation and electro-polishing for increased durability and corrosion resistance. From chemical plants to pharmaceutical lines, they provide superior safety and reliability.

Versatile, Easy Installation & Reusability

These instrumentation tube fittings can be installed quickly without special tools, making assembly and maintenance more efficient. The double, single, or twin ferrule types allow for repeated disassembly and reassembly while retaining performance, saving you time and reducing operational costs.

Precision Engineering for Demanding Environments

Delixin-lok Union Cross Fittings are crafted through advanced precision machining, ensuring tight tolerance and reliable performance under varying pressures and extreme temperatures. Their excellent corrosion resistance and high-tensile strength cater to the rigorous demands of modern instrumentation and process industries. The polished stainless steel finish not only enhances durability but also maintains superior aesthetic quality, meeting global standards.

Versatility and Customization for Every Application

Whether your requirements involve unique tubing sizes or specific process conditions, Delixin-lok offers a customizable range for both inside and outside diameters (1/8 to 2 inches or as requested). This adaptability allows seamless integration into diverse fluid and gas handling systems, supporting industries from chemical processing to energy and laboratory research.

FAQ's of Delixin-lok Tube Fittings:

Q: How are Delixin-lok Union Cross Tube Fittings installed?

A: Installation of Delixin-lok fittings involves a straightforward double ferrule compression process. Tubing is inserted into the fitting body and the ferrules are compressed by tightening the nut, creating a robust, leak-proof seal without the need for welding or threading.

Q: What benefits do Delixin-lok Tube Fittings offer for gas and liquid transfer systems?

A: They provide secure, leak-proof connections with high corrosion resistance and durability, ensuring safety and longevity even under extreme pressures (up to 6000 psi) and temperatures (-196C to 400C). Their union cross design allows versatile integration in complex piping networks.

Q: When should stainless steel grades SS304, SS316, or SS316L be selected for these fittings?

A: SS304 is ideal for general corrosion resistance, SS316 suits more aggressive environments with higher chloride exposure, and SS316L is preferred for its low carbon content, minimizing carbide precipitation during welding and further enhancing corrosion resistance.

Q: Where are Delixin-lok fittings typically used?

A: These fittings are widely utilized in instrumentation panels, chemical processing plants, oil and gas refineries, laboratories, and other applications requiring reliable connections for fluid and gas transfer under high pressure and temperature conditions.

Q: What is the process behind Delixin-lok's leak-proof performance?

A: The double ferrule compression connection design ensures that, upon tightening, the ferrules grip both the tubing and the fitting body, forming a gas-tight seal. This method eliminates leakage risks, even with dynamic pressure or temperature variations.

Q: Can the inside diameter and length of the fittings be customized?

A: Yes, Delixin-lok offers customization of inside diameter, outside diameter (1/8 to 2 inches), and length according to specific tubing and project requirements. Customers can request custom sizes to fit their unique system needs.
