DELIXIN-LOK STUDS

Name: DELIXIN-LOK STUDS
Brand: DELIXIN ENTERPRISES
Price: 475.0 INR
Availability: InStock

Price 475.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

DELIXIN-LOK STUDS Specification

Bend Radius
Not recommended for bending

Thread Type
Metric / UNC / UNF

Tensile Strength
Up to 700 MPa (varies by grade)

Connection Type
External Thread

Flexibility
Rigid

Yield Strength
Up to 250 MPa (varies by grade)

Diameter
M6, M8, M10, M12, M16, M20, M24

Temperature Range
-50C to +300C

Sealing Type
Non-sealing

Tolerance
0.1 mm

Coating Type
None / Custom Coating Available

Product Type
Threaded Stud

Material
Stainless Steel

Connection
Threaded

Shape
Cylindrical

Standard
DIN, ASTM

Surface Treatment
Polished / Passivated

Outer Diameter
M6 to M24 (custom sizes available)

Section Shape
Round

Length
1 inch to 36 inches

Thickness
As per requirement

Color
Silver

Usage
Industrial Fastening

Rated Pressure
Suitable for high-load fastening

Material Grade
SS304 / SS316

Application
Construction, Machinery, Automotive, Fabrication

Custom Length Options
Available on request

Weight
Varies with size

Pack Type
Box / Bag / Customized

Compliance
RoHS Compliant

End Finish
Chamfered / Plain Ends

Corrosion Resistance
Excellent, suitable for harsh environments

Manufacturing Process
Cold Rolled/Hot Rolled

Thread Pitch
Standard as per DIN/ASTM

DELIXIN-LOK STUDS About

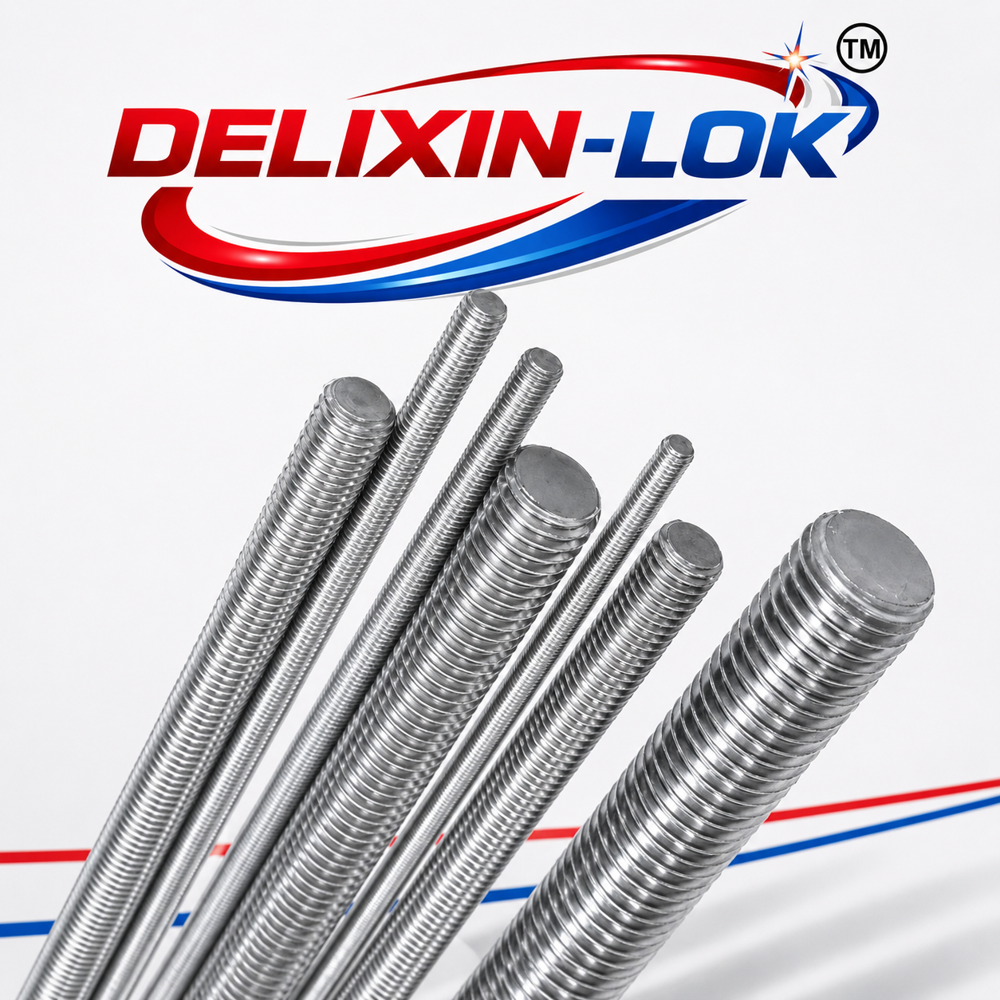

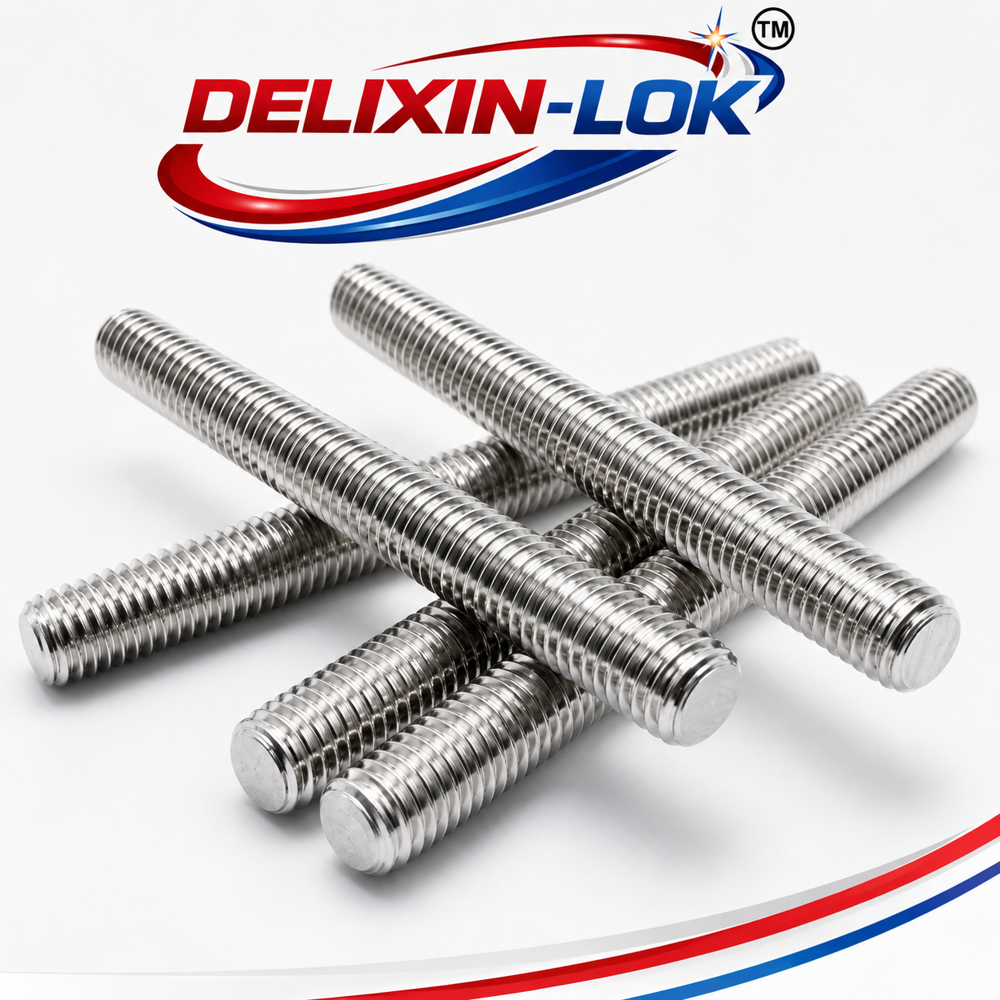

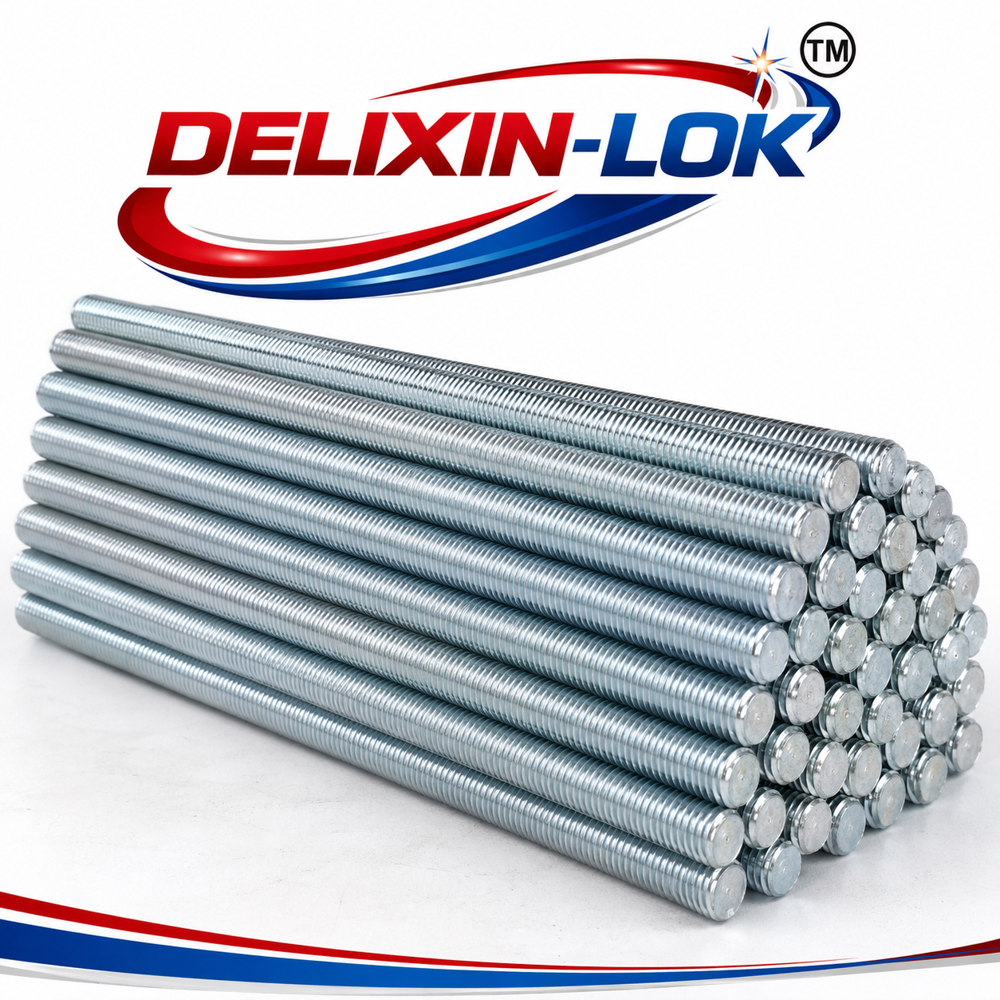

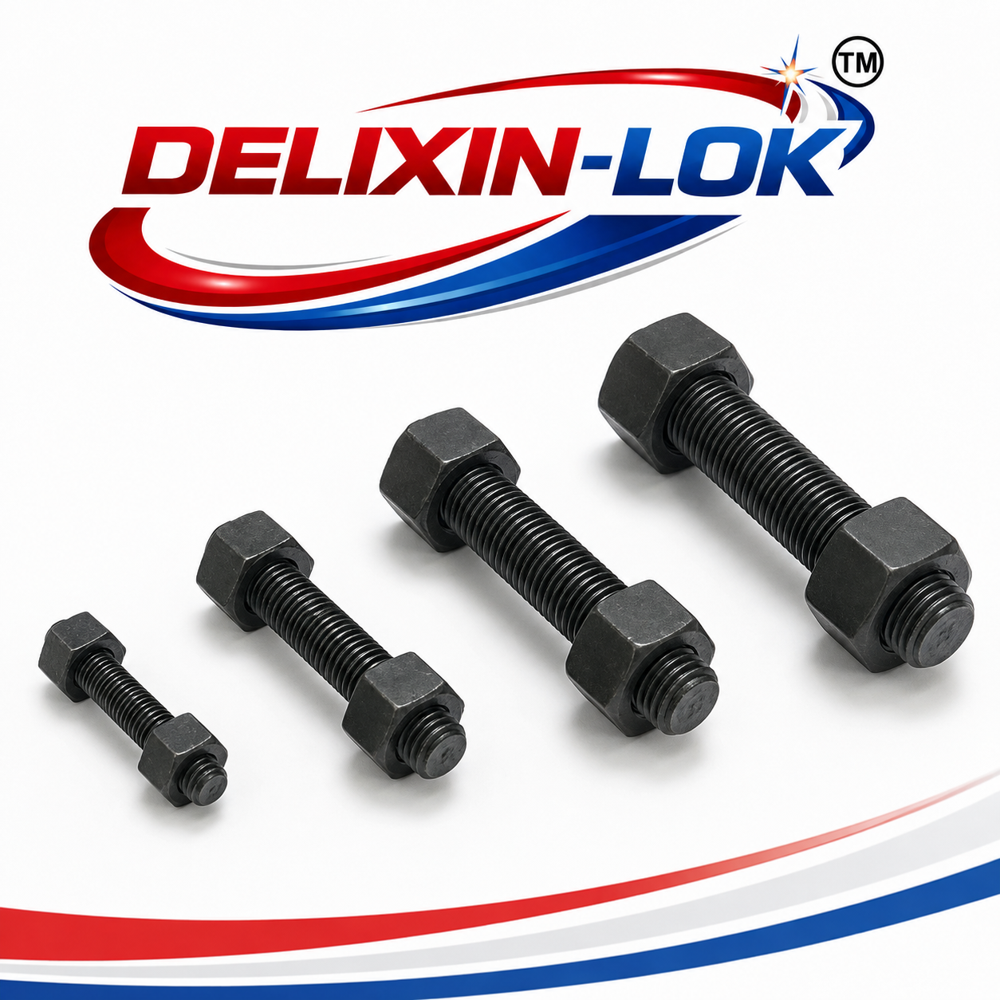

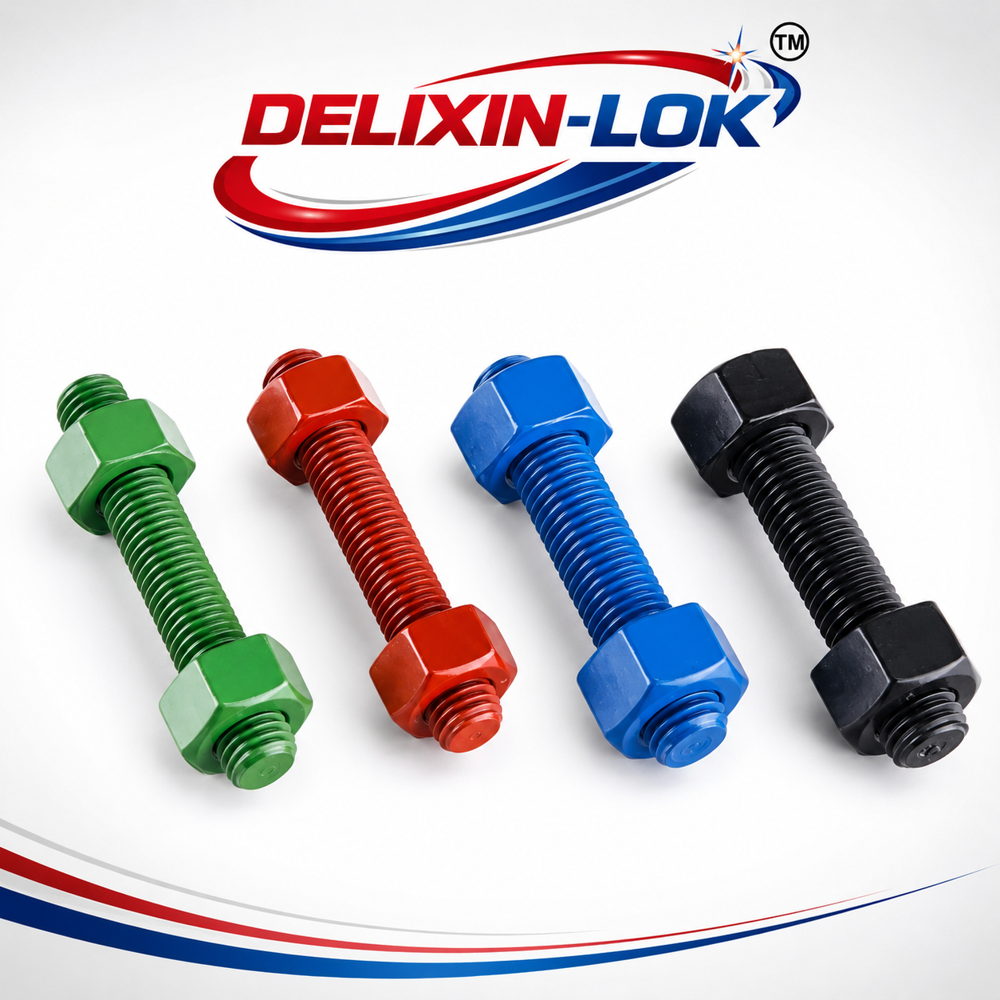

DELIXINLOK Fully Threaded Rods & Stud Bolts

DELIXINLOK Fully Threaded Rods and Stud Bolts are engineered for reliable fastening, structural support and heavy-duty industrial assembly. Manufactured with precision-rolled or cut threads, these products provide consistent thread engagement, dimensional accuracy and dependable mechanical performance.

Specification	Technical Details
Brand	DELIXINLOK
Product	Fully Threaded Rods / Threaded Bars / Stud Bolts
Manufacturer	Delixin Enterprises
Manufacturing Type	Regular size and custom manufacturing
Rod Diameter / Thickness	M6 to M100
Standard Lengths	1 Metre and 2 Metres
Custom Length	Up to 3 Metres
Custom Cutting	Available according to drawing or required length
Materials	Mild Steel, Stainless Steel 304 and Stainless Steel 316
Surface Finish	Plain, Zinc Plated/Galvanized (GI), Black Oxide, Hot-Dip Galvanized or custom coated
Thread Type	Metric Coarse, Metric Fine, UNC, UNF, BSW, BSP and custom threads
Thread Form	Fully threaded throughout the complete length
Manufacturing Process	Thread rolling or precision thread cutting
Thread Direction	Right-hand thread; left-hand thread available on request
Thread Standards	ISO Metric, DIN 975/DIN 976, ASTM and ASME standards as applicable
End Finish	Plain cut, chamfered or custom-machined ends
Accessories	Heavy Hex Nuts, Lock Nuts, Washers and Anchor Plates
Testing	Dimensional inspection, thread-gauge inspection and visual inspection
Documentation	MTC, inspection report and coating certificate available on request
BRAND	DELIXINLOK, material grade, diameter, length, heat/lot number
Supply Condition	Individual pieces, cut lengths or bulk bundles
Country of Origin	India

Available Size and Length Range

Rod Diameter	1 Metre	2 Metres	Custom up to 3 Metres
M6M12	Available	Available	Available
M14M24	Available	Available	Available
M27M36	Available	Available	Available
M39M64	Available	Available	Available
M68M100	On Request	On Request	On Request

Material Selection

Material/Finish	Recommended Applications
MS Mild Steel	General fabrication, machinery, structural supports and indoor installations
GI Zinc-Plated/Galvanized MS/High-tensile carbon-steel, Property Class 8.8	Corrosion-resistant structural work, outdoor supports and general industrial installations
SS 304	Food, pharmaceutical, water treatment, chemical and moderately corrosive environments
SS 316	Marine, offshore, oil and gas, chemical processing and highly corrosive environments

Key OEM Features

Uniform threads throughout the complete rod length
High dimensional and pitch accuracy
Clean chamfered ends for easy nut engagement
Excellent tensile and fastening performance
Corrosion-resistant surface finishes
Custom diameter, thread pitch, coating and length available
Suitable for standard and heavy-duty assemblies
Manufactured against drawing, sample or technical datasheet

Applications

Suitable for oil and gas installations, petrochemical plants, power projects, refineries, construction, structural fabrication, pipe supports, HVAC systems, machinery foundations, marine equipment, electrical installations and industrial maintenance.

DELIXINLOK Precision-Manufactured Threaded Rods and Stud Bolts for Reliable Industrial Fastening.
