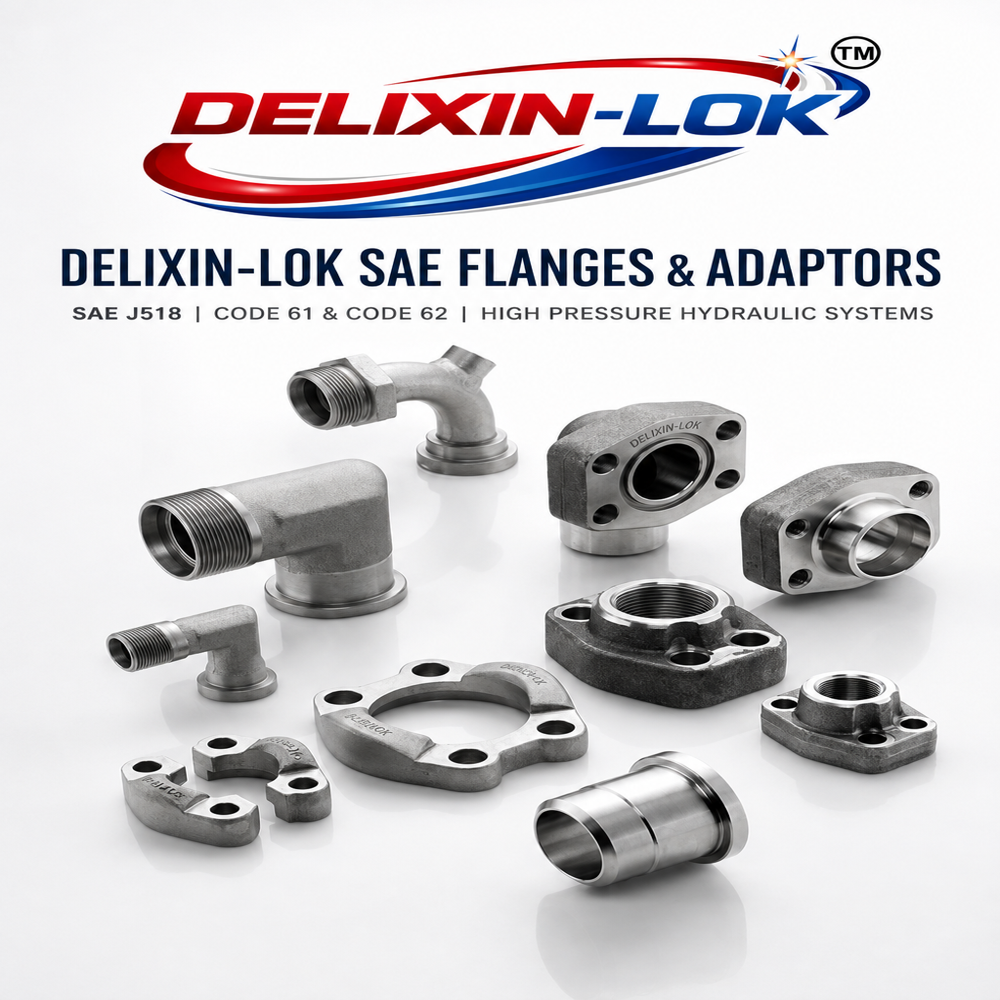

DELIXIN-LOK Hydraulic Sae Flanges

Name: DELIXIN-LOK Hydraulic Sae Flanges
Brand: DELIXIN ENTERPRISES
Price: 3600.0 INR
Availability: InStock

Price 3600.0 INR/ Unit

Get a Price/Quote

MOQ : 100 Units

DELIXIN-LOK Hydraulic Sae Flanges Specification

Grade
ASTM A105, SS316, SS304

Purity
99% Metal Content

Application
Hydraulic Systems, Industrial Piping, Oil & Gas, Marine, Power Plants

Feature
Leak-proof, High pressure resistance, Durable, Easy Assembly

Dimension (L*W*H)
As per standard or custom requirements

Product Type
Hydraulic SAE Flange

Material
Carbon Steel, Stainless Steel

Standard
SAE J518, ISO 6162

Shape

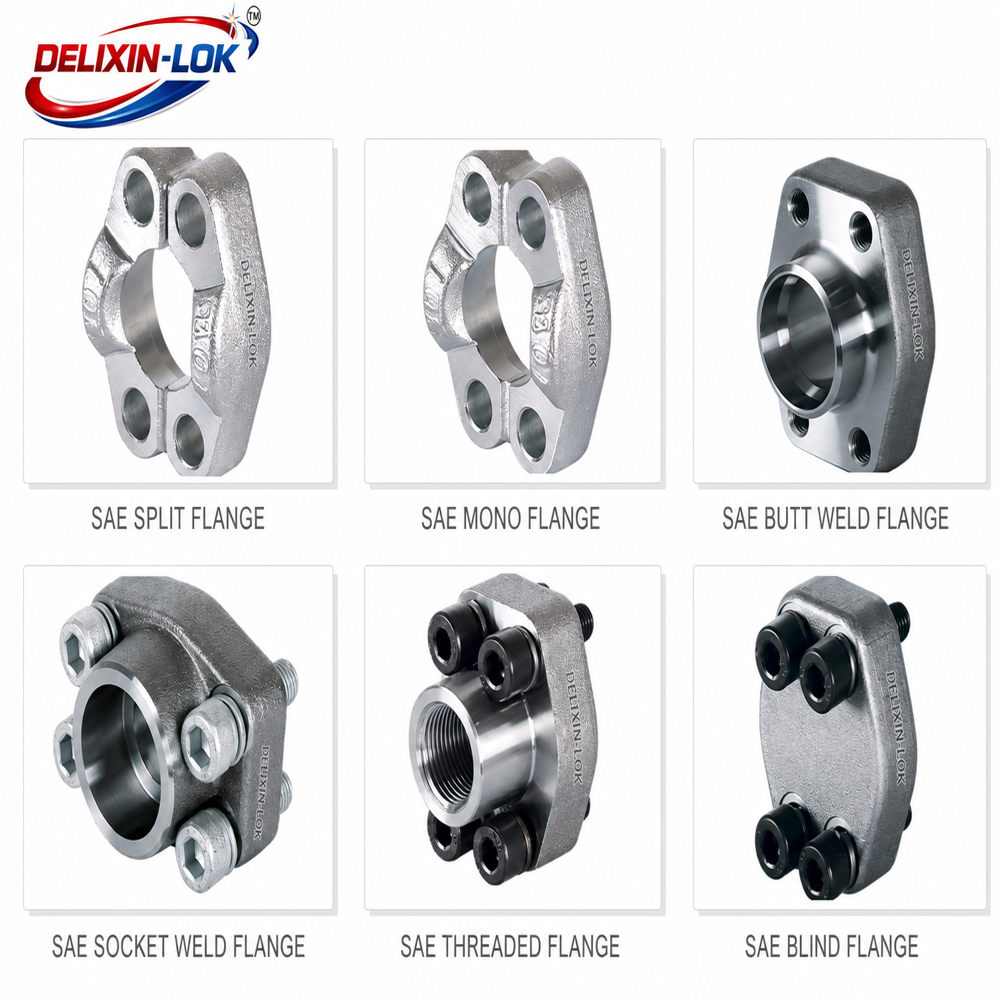

Split Flange, Mono Flange, Butt Weld Flange, Socket Weld Flange, Threaded Flange, Blind Flange

Surface
Smooth, Anti-Corrosion Coating

Connection
Welded, Threaded, Bolted

Technics
Forged, Machined

Pressure
Up to 6000 PSI

Size
1/4 to 5 (DN6 to DN125)

Color
Metallic Silver/Grey

Corrosion Resistance
High

Finish
Zinc Plated, Phosphated, Plain

Packing
Carton and Wooden Cases

Bolt Hole
4-Bolt Pattern

OEM Service
Available

Temperature Range
-40C to +120C

Thread Type
BSPP/NPT (For Threaded Flange)

About DELIXIN-LOK Hydraulic Sae Flanges

BRAND	DELIXIN-LOK
DESIGN	SAE J518 C / ISO 6162 / ISO 6164 / JIS B2291
MATERIAL	CS, SS 304, SS 316, SS 316 TI, ALLOY STEEL, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, SMO 254, 904 L, TITANIUM

WORKING PRESSURE	UPTO 210 BAR (3000 PSI) & 420 BAR (6000 PSI) & 700 BAR (10,000 PSI) CUSTOMISED
CODE	CODE 61 FLANGE (3000 PSI) & CODE 62 FLANGE (6000 PSI)
SIZE RANGE	3/8" (DN 10) TO 5" (DN 125)
CONNECTIONS	BUTT WELD, SOCKET WELD, THREADED (BSPP, NPT, METRIC, JIC)
BODY TYPE	FORGED, BAR STOCK
FLANGE ACCESSORIES	O-RING, BOLT, NUT, WASHER
O-RING MATERAL	NITRILE, BUNA 90 SHORE, VITON 85-90 SHORE
BOLTS MATERIAL	HIGH TENSILE 8.8 GR, 10.9 GR, 12.9 GR, SS 304, SS316
SURFACE	CARBON STEEL - BLACK PHOSPHATED, TRIVALENT ZINC PLATED,
	STAINLESS STEEL - ELECTROPLATING, NATURAL FINISH
EQUIVALENT BRANDS	STAUFF, PARKER, HAVIT, HANSA FLEX, ANCHOR FLUID, OLEO TECHNICA
APPLICATIONS	INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY, ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT

Engineered for Demanding Applications

DELIXIN-LOK hydraulic SAE flanges are designed to withstand harsh environments and high-pressure requirements. Their leak-proof design, robust material selection, and precision machining make them suitable for hydraulic systems, industrial piping, and critical processes across oil & gas, marine, and power sectors. With a variety of standard and customized options, they guarantee compatibility and reliable performance in even the most challenging settings.

Superior Corrosion Resistance and Durability

Each flange is finished with zinc plating, phosphating, or left plain, coupled with an anti-corrosion coating for outstanding protection against rust and harsh chemicals. Their smooth surface finish further enhances resistance, while the choice of carbon steel and stainless-steel grades ensures long-lasting durability. Whether serving as a split, mono, or butt weld flange, DELIXIN-LOK flanges are crafted for extended service life in all conditions.

FAQ's of DELIXIN-LOK Hydraulic Sae Flanges:

Q: How are DELIXIN-LOK hydraulic SAE flanges installed?

A: DELIXIN-LOK flanges are installed by welding, threading, or bolting, depending on the specific flange type and application. Clear dimensions and precision machining simplify assembly for a secure, leak-proof fit.

Q: What applications are these hydraulic SAE flanges suitable for?

A: These flanges are widely used in hydraulic systems, industrial piping, oil and gas installations, marine equipment, and power plants, thanks to their high pressure resistance and excellent corrosion protection.

Q: When should I choose stainless steel over carbon steel for DELIXIN-LOK flanges?

A: Select stainless steel (SS304 or SS316) for environments exposed to aggressive chemicals or high moisture, such as marine or offshore applications. Carbon steel (ASTM A105) is ideal for most industrial uses where cost-effectiveness and robust performance are priorities.

Q: What process ensures the high corrosion resistance of these flanges?

A: Corrosion resistance is achieved through zinc plating, phosphating, or leaving the finish plain, supported by a smooth, anti-corrosion coating applied over the base material. This combination extends flange lifespan in challenging environments.

Q: Where can custom dimension orders be placed for these hydraulic flanges?

A: Orders requiring custom dimensions can be arranged directly through DELIXIN-LOK's OEM service. Standard sizes cover DN6 to DN125, but both dimensions and surface finishes can be tailored upon request.

Q: How do DELIXIN-LOK flanges benefit hydraulic and industrial systems?

A: Their design delivers leak-proof, high-pressure connections, excellent corrosion resistance, and easy assembly. This helps prevent system failures, reduces maintenance needs, and supports lasting, efficient operations.
