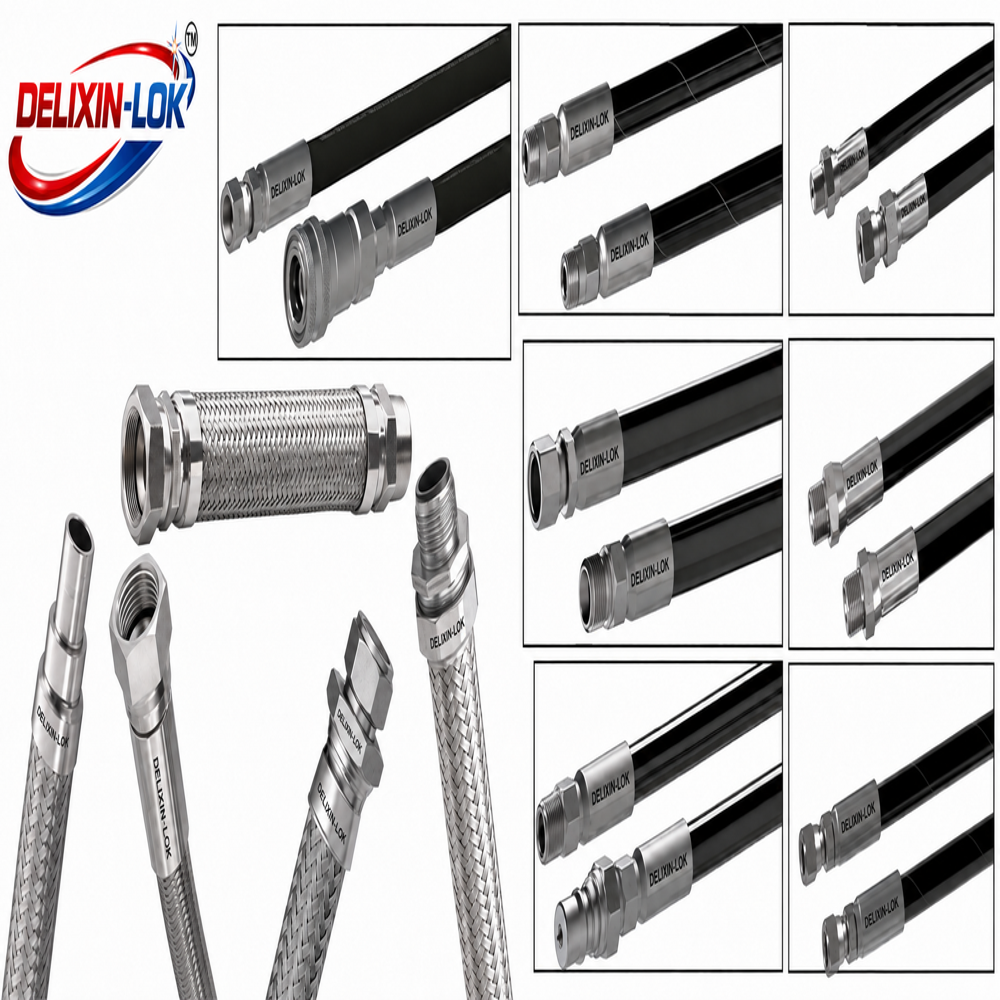

Corrugated Flexible Hose

Name: Corrugated Flexible Hose
Brand: DELIXIN ENTERPRISES
Price: 900.0 INR
Availability: InStock

Price 900.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Corrugated Flexible Hose Specification

Max. Speed
Suitable for pressure applications; not specified for RPM

Connection
Threaded, Flanged, Quick-Connect

Bore
Full bore (smooth flow path)

Sealing
O-ring or metal-to-metal

Torque
Not applicable for hose (torque depends on fitting tightening specifications)

Thread
BSP, NPT, Metric as required

Head Code
Hexagonal, Round

Material
Stainless Steel (SS304, SS316), Rubber, PTFE, or specified alloy

Structure
Corrugated internal hose with stainless steel braided outer layer

Standard
International accepted standards-DIN, ISO, JIS etc.

Inner Diameter
Available from 6mm up to 100mm or specified size

Outer Diameter
As per hose model and braid design

Application
Fluid and gas transportation, hydraulic and pneumatic connections, HVAC systems, industrial piping, plumbing.

Surface Treatment
Polished / Braided finish

Technique
Corrugated forming with external braiding

Shape
Corrugated hose with flexible configuration

Leakage Rate
Zero leakage with proper installation (factory tested)

Temperature Range
-196C to +600C depending on material

Corrosion Resistance
Excellent, suitable for harsh chemical and marine environments

Flexibility
Highly flexible, suitable for tight bending radius

End Fittings
Available with fixed, swivel, and customized connectors

Working Pressure
Ranges from 10 bar up to 215 bar depending on size

Burst Pressure
Upto 3 times of working pressure

Length
Customizable from short to long runs as per requirement

Corrugated Flexible Hose About

Corrugated Metal Hoses are also said to dampen or absorb the noise and vibrations generated from the pumps, engines, compressors, and other equipment. Stainless Steel Corrugated Flexible Metal Hose connects misaligned rigid pipings and moving parts of machinery. Corrugated Flexible Tubing manufactured by us is passed through various tests before supplying the final product to the customer.

Flexible 3 Inch Drain Pipe is easy for handling and installation and can be used with listed PVC solvents, primer, and cement. Corrugated Flexible Tubing is widely used to cover optical fibers and electrical cables. Corrugated Stainless Steel Hose is available widely in the market and is used in a variety of applications. Braided Flexible Hose is popularly used in manufacturing plants, municipal utility systems, and all around the house. Braided Hose For Water Line is said to be light in weight, flexible, and non corrosive due to which they do not crack. Flexible Corrugated Hose With Flange End have flanges at both the ends to secure the hose and provide a tight seal. Flexible 3 Inch Drain Pipe supplied by us is used in various industries domestically and internationally. Our affordable price and unmatched quality have made us one of the leading manufacturers of 1 Inch Corrugated Water connectors.

RAND NAME	DELIXIN-LOK
FLEXIBLE CORRUGATED HOSE SIZE	1/4" TO 12"
SPECIFICATION	BS 6501 / ISO 10380
FLEXIBLE CORRUGATED HOSE END FITTINGS	FLANGES, THREADED FITTINGS, QUICK RELEASE COUPLING , CAMLOCK COUPLING
PRESSURE RATING	LOW, MEDIUM, HIGH
FLEXIBLE CORRUGATED HOSE MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MATERIAL	SS 316, SS 304, BRASS, SS 316 TI, CS, COPPER, DUPLEX, INCONEL, SUPER DUPLEX, HASTELLOY, MONEL, ALLOY 20, SMO 254, 904L & TITANIUM, ALL OTHER ALLOYS
