SS 304 VCR FITTING

Name: SS 304 VCR FITTING
Brand: DELIXIN ENTERPRISES
Price: 1100.0 INR
Availability: InStock

Price 1100.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

SS 304 VCR FITTING Specification

Product Type
VCR Fitting

Material
Stainless Steel 304 (SS 304)

Type

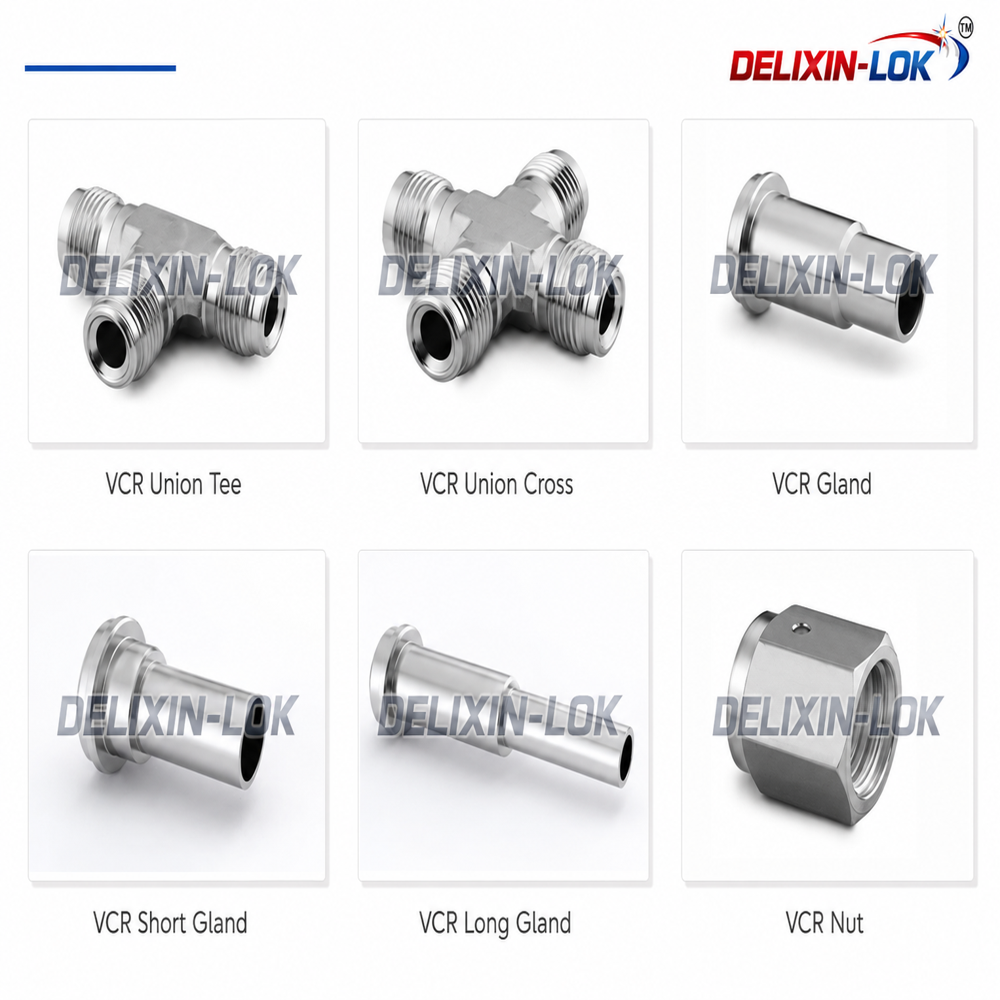

Union Tee, Union Cross, Gland, Short Gland, Long Gland, Nut

Shape
Tee, Cross, Straight, Hexagonal (Nut)

Technique
Precision Machined

Surface Treatment
Polished / Passivated

Standard
ASME / ASTM / DIN / JIS (as per application)

Outer Diameter
Customizable (typically matches inside diameter range)

Length
Varies by type and application specification

Inside Diameter
Customizable (typically 1/8 to 1 as per VCR fitting standards)

Wall Thickness
As per design requirements, usually 1mm to 3mm

Tensile Strength
520 MPa (for SS 304)

Grade
304 Stainless Steel

Size
Available in multiple sizes (1/8 to 1)

Color
Silver / Metallic

Corrosion Resistance
Excellent (suitable for aggressive media)

Connection
Male/Female Threaded, Weld/Tube End

Working Pressure
Up to 6000 psi (varies by size and fitting type)

Sealing Type
Metal-to-metal seal

Leak Tightness
Helium Leak Rate 1 x 109 Pam3/s

Temperature Range
-196C to 450C

Application
Semiconductor, Analytical, Chemical, High-purity Gas, Instrumentation

Compliance
RoHS, PED, ISO 9001 Certified Manufacturing

About SS 304 VCR FITTING

SIZE	1/8" TO 1" / 6 MM TO 25 MM

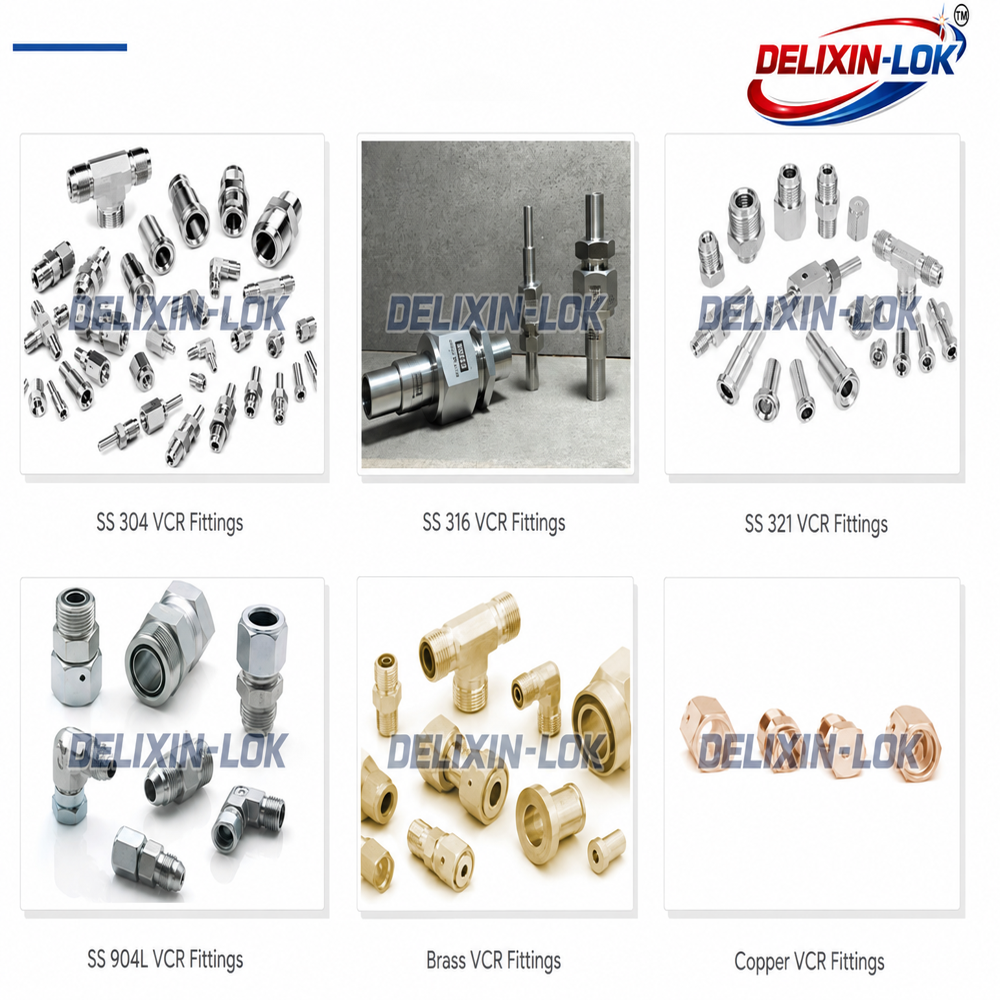

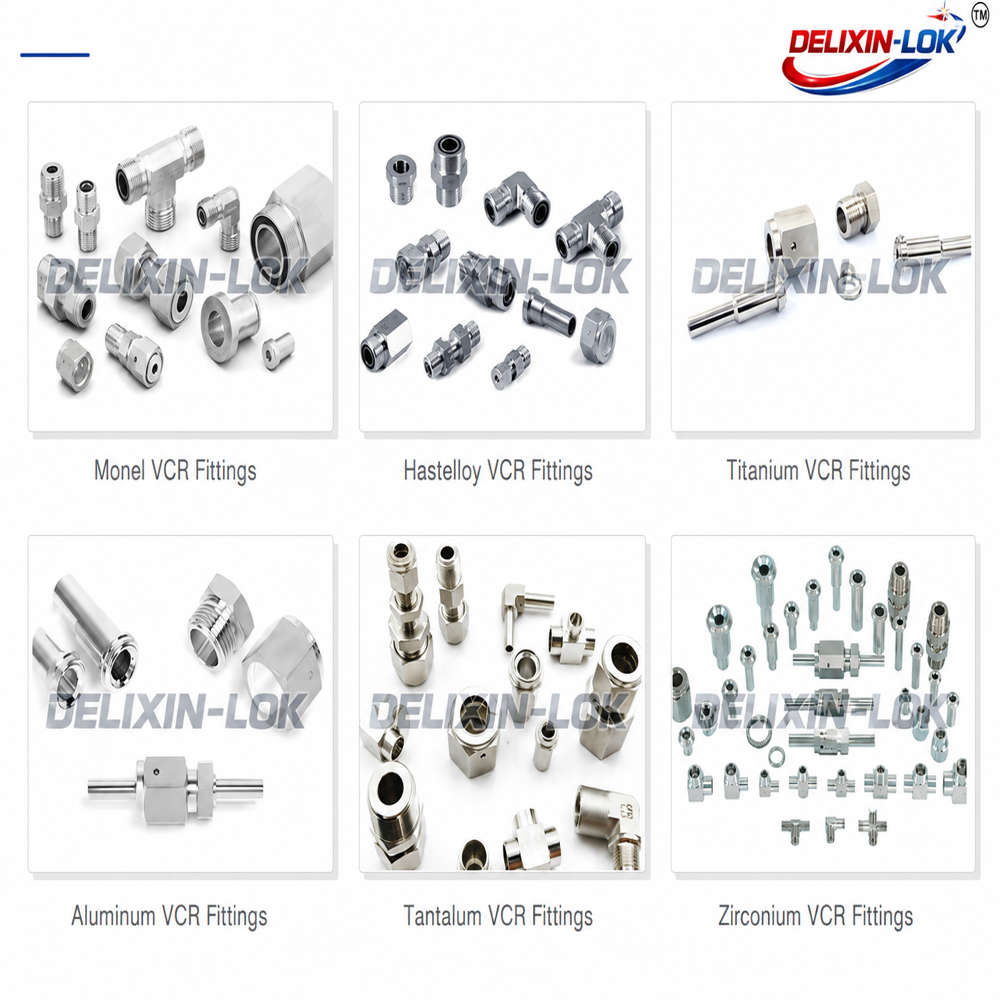

MATERIAL	SS 316, SS 316, BRASS, COPPER, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, TITANIUM, ALLOY 20, 6MO,
GASKET MATERIAL	SS, COPPER, NICKEL
CONNECTION	THREADED, TUBE END, VCR
BODY TYPE	BAR STOCK, FORGED
BRAND NAME	DELIXIN-LOK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, DK-LOK, HAMLET, HOKE

Ultra-High-Polish Gasket Fittings Supplier in Mumbai in Various Material like Stainless steel , Brass, Copper, Nickel Alloy etc.

Robust and Versatile Design

SS 304 VCR fittings feature an array of connection options, including male or female threaded, welded, and tube ends. Available as union tees, crosses, glands, and nuts, they are engineered to fit a variety of critical systems. The surface is polished and passivated, enhancing both its aesthetic appeal and corrosion resistance for longevity in aggressive environments.

Exceptional Leak Tightness and Purity

These fittings are designed to meet rigorous helium leak rates of 1 x 109 Pam3/s, ensuring ultra-high leak tightness crucial for sensitive analytical, pharmaceutical, and semiconductor processes. With their precision-machined metal-to-metal seals, the risk of contamination or leakage is minimized, supporting consistent high-performance operation in high-purity applications.

FAQ's of SS 304 VCR FITTING:

Q: How do SS 304 VCR fittings ensure leak-tight connections in high-purity applications?

A: SS 304 VCR fittings use a precision-engineered metal-to-metal sealing method, achieving extremely low helium leak rates (1 x 109 Pam3/s). This ensures uncompromised integrity, essential for semiconductor, analytical, and instrumentation environments demanding ultra-high purity and leak prevention.

Q: What makes these VCR fittings suitable for aggressive chemicals and demanding temperatures?

A: The fittings are manufactured from stainless steel 304, renowned for its excellent corrosion resistance and durability. They support a wide temperature range from -196C to 450C, making them reliable in environments exposed to aggressive chemicals and thermal extremes.

Q: When should I opt for customizable inner and outer diameters or fitting types?

A: Customizable diameters and fitting types are recommended when your application has specific flow, compatibility, or installation requirements. This flexibility ensures the fittings integrate seamlessly with existing systems, optimizing both performance and reliability in specialized processes.

Q: Where can SS 304 VCR fittings be most effectively used?

A: These fittings are ideal for use in high-stakes sectors such as the semiconductor industry, analytical labs, chemical processing plants, and high-purity gas delivery systems. Their compliance with international standards allows for versatile integration into global industrial settings.

Q: What is the process for installing SS 304 VCR fittings to ensure optimal performance?

A: Installation involves correctly aligning the components, applying appropriate torque to achieve the metal-to-metal seal, and following best practices for assembly. This process, when done per manufacturer guidelines, guarantees leak-tight connections and long-term system integrity.

Q: How does RoHS, PED, and ISO 9001 compliance benefit users of these fittings?

A: These certifications verify that the fittings are producd under stringent environmental, safety, and quality control standards. Users benefit from assured product reliability, international regulatory compliance, and minimized risk of environmental or operational failures.
