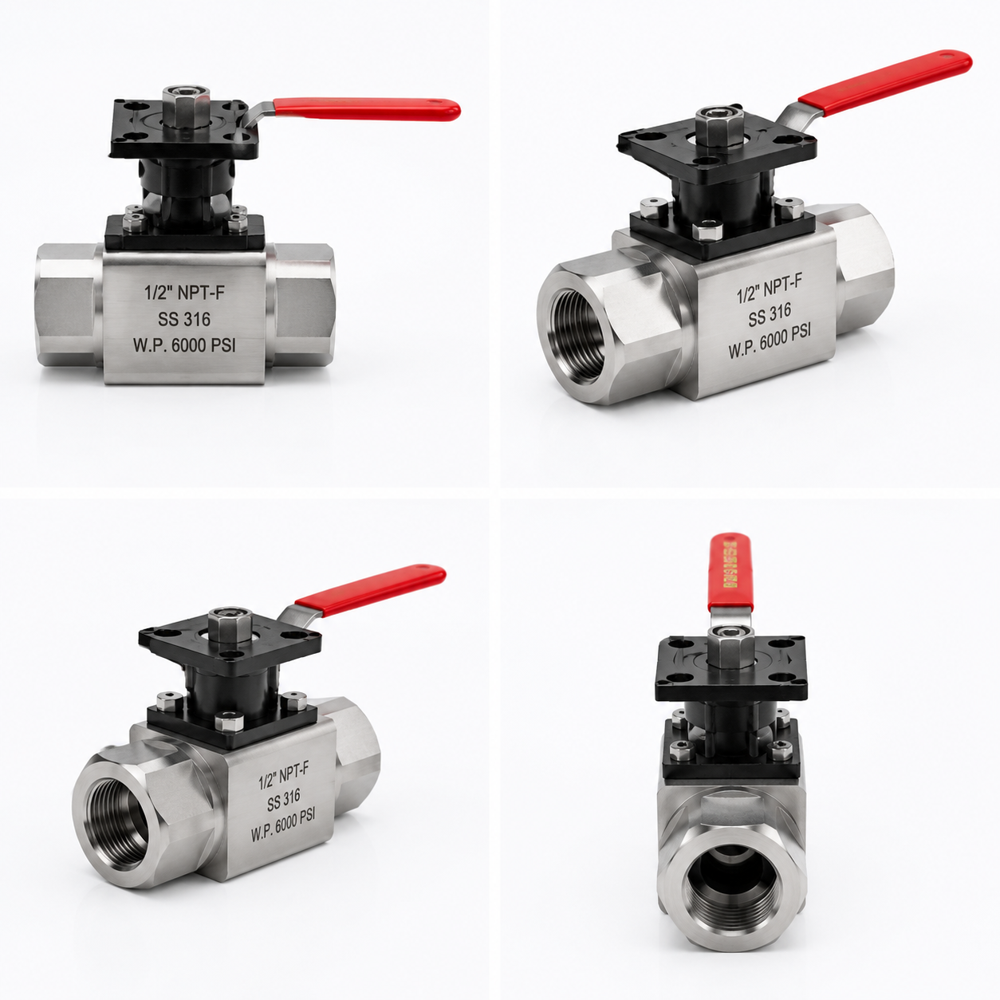

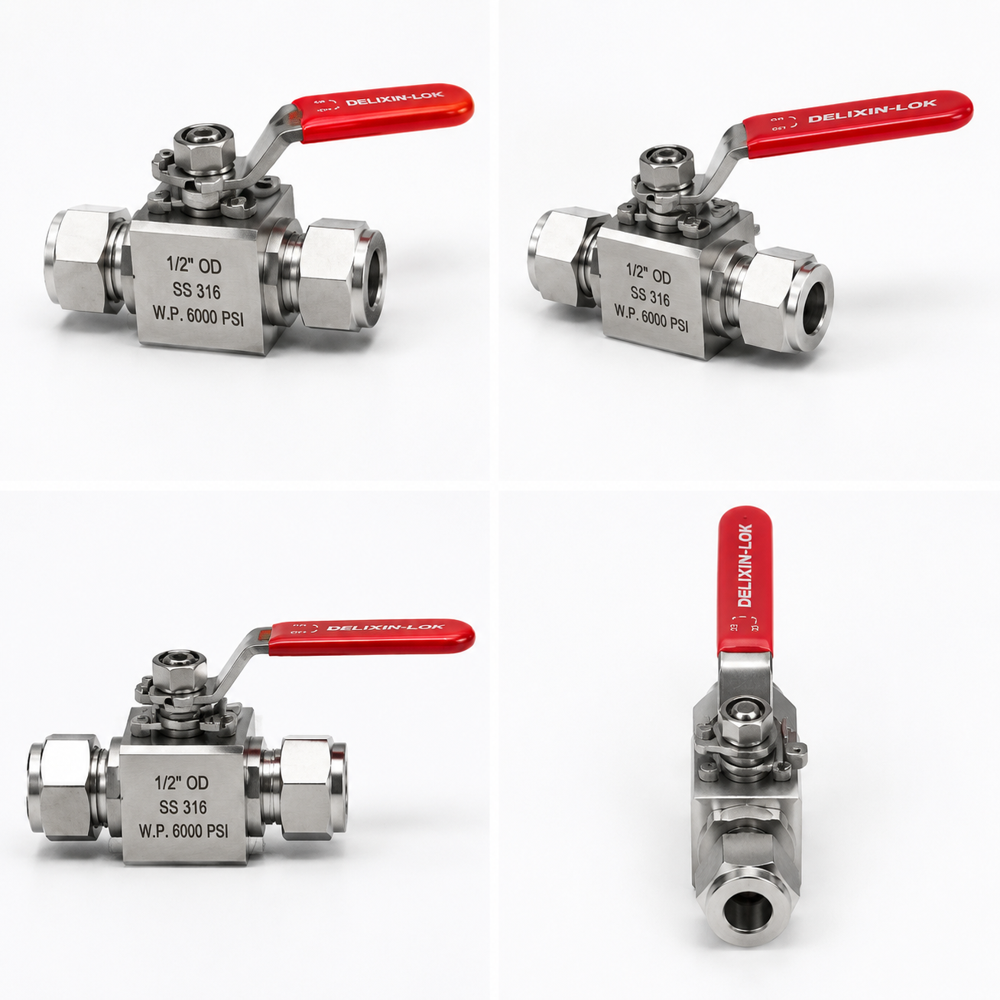

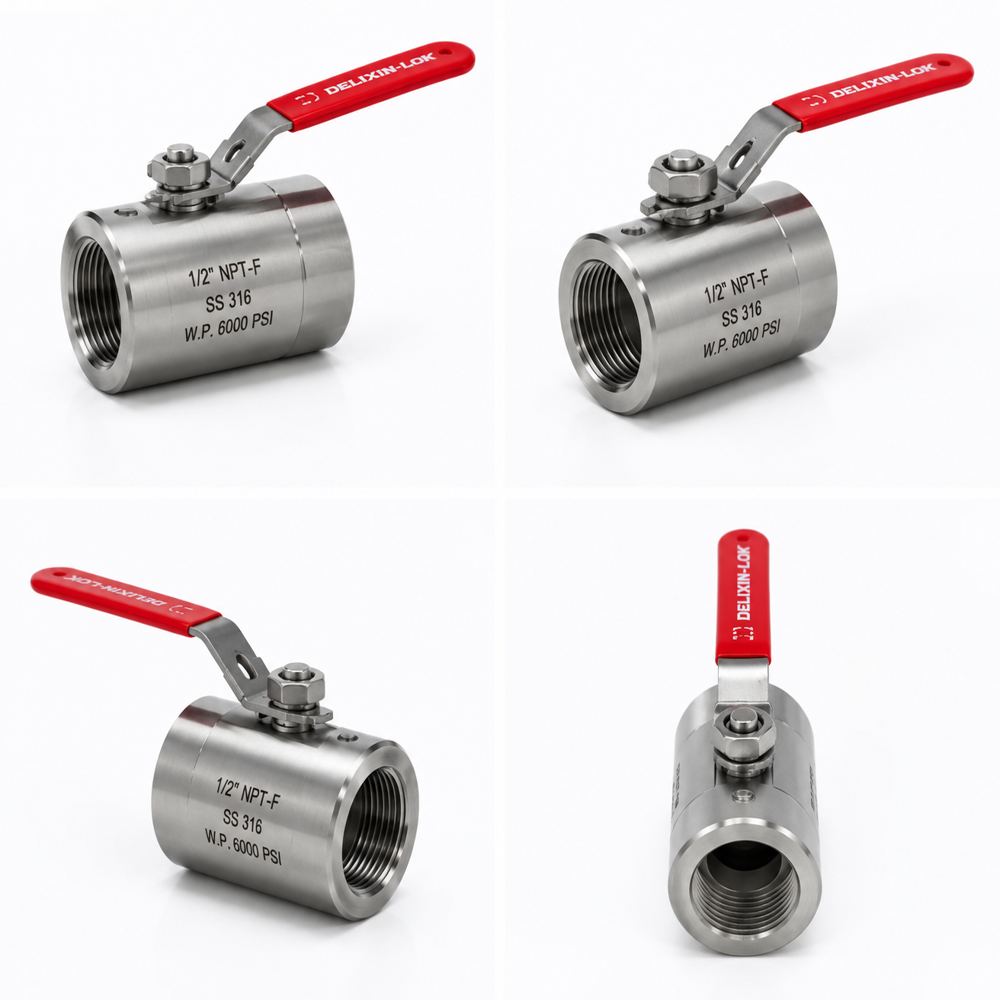

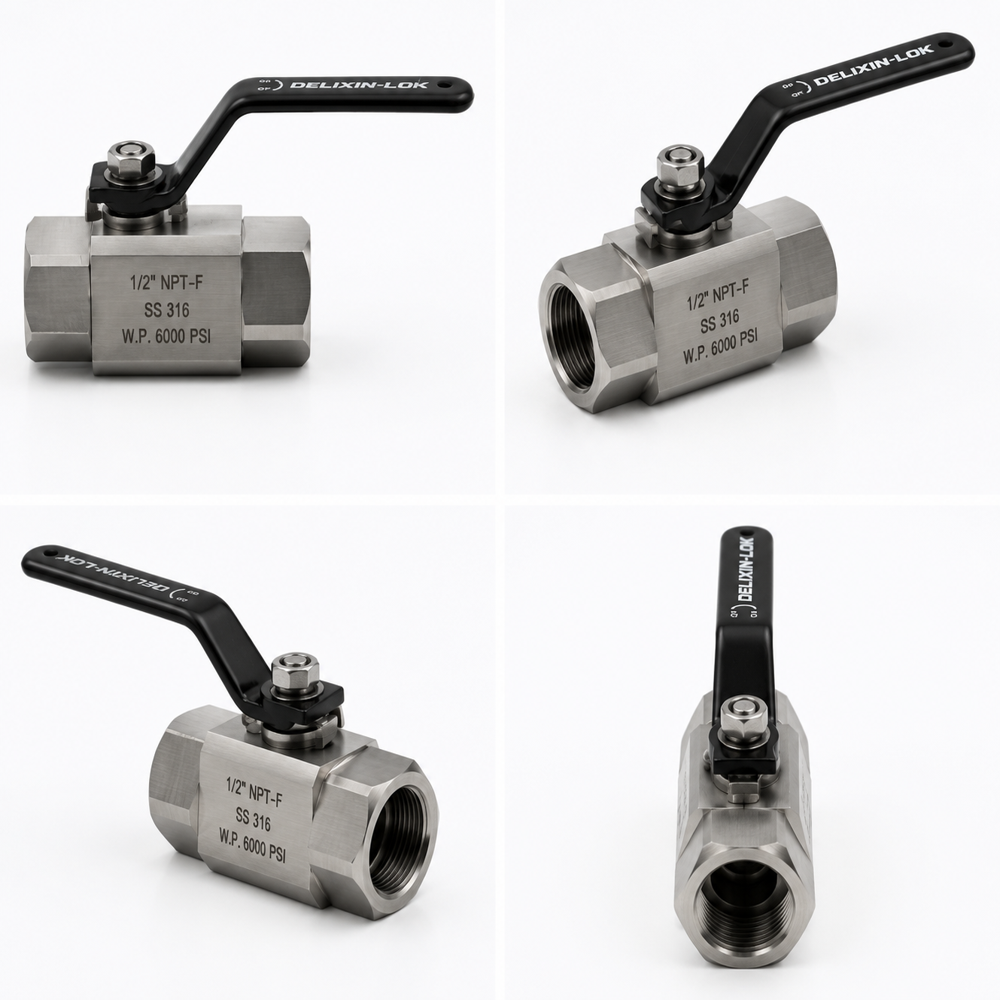

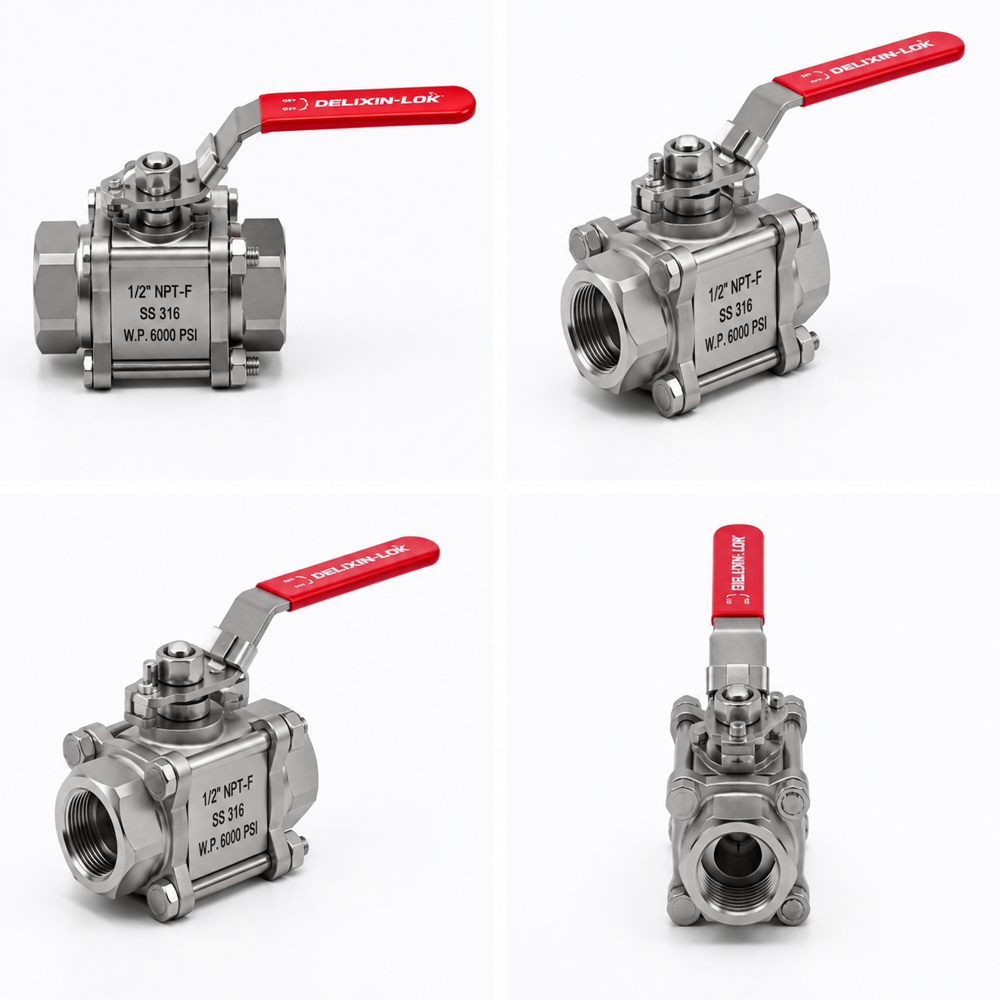

DELIXIN-LOK Hydraulic Ball Valve (High Pressure)

Name: DELIXIN-LOK Hydraulic Ball Valve (High Pressure)
Brand: DELIXIN ENTERPRISES
Price: 900.0 INR
Availability: InStock

Price 900.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

DELIXIN-LOK Hydraulic Ball Valve (High Pressure) Specification

Structure
2-Way Ball Valve

Diameter
1/2 Inch

Caliber
1/2 Inch

Channels
Single Flow Channel

Pressure
Working Pressure 6000 PSI

Connection
NPT Female Threaded

Material
SS 316 (Stainless Steel 316)

Power
Manual

Media
Hydraulic Oil, Water, Gas (General Fluids)

Temperature of Media
-20C to 180C (Typical for SS316)

Port Size
1/2 NPT-F (Female Thread)

Flange
No flange, threaded connection

Finish
Polished Stainless Steel

Application
High Pressure Hydraulic Systems, Industrial Fluid Control

Handle Material
Stainless Steel with Red Insulated Grip

Handle Locking
Lockable Lever Handle

Body Material
Forged Stainless Steel

Mounting
Panel Mount (optional, via handle bracket)

Stem Type
Blowout-Proof Stem

Seat Material
PTFE (Polytetrafluoroethylene) or PEEK (industry standard)

End Connection
Threaded NPT Female Ends

Suitable Fluids
Compatible with aggressive liquids and gases

Operation
Quarter Turn Ball Valve

Service Life
Long service life under high pressure

Leakage Class
Bubble Tight

ISO Standard
Compatible with ASME B16.34 and API 6D (typical industry standard for this type)

Packing Type
Double O-Ring and PTFE Packing (common for high pressure valves)

About DELIXIN-LOK Hydraulic Ball Valve (High Pressure)

DELIXIN-LOK High Pressure Hydraulic Ball Valve with Female Female NPT threaded ends, suitable for hydraulic and industrial high-pressure service.

Attribute	Specification
Brand	DELIXIN-LOK
Product Name	Hydraulic Ball Valve
Valve Type	2 Way Floating Ball Valve
Body Design	One Piece Block Body
Body Material Grade	SS316
Body Material	ASTM A182 F316
Ball Material	SS316
Stem Material	SS316
Seat Material	PTFE (PEEK Optional)
Connection Type	Female Female
End Connection	Screwed
Thread Standard	NPT (BSP / BSPT Optional)
Available Sizes	1/4", 3/8", 1/2", 3/4", 1"
Pressure Rating	10000 PSI (414 Bar)
Port Type	Full Bore
Operation	Manual Lever
Temperature Range	-40C to +200C (PTFE Seat)
Testing	100% Hydrostatic & Pneumatic Tested
Leakage	Bubble Tight Shut-Off
Country of Origin	Made in India

High-pressure hydraulic ball valves commonly use threaded connections, quarter-turn operation, PTFE-based seats, and 6000 PSI working pressure for hydraulic service.

Precision Engineering for High Pressure Performance

Designed for use in high pressure hydraulic systems and industrial fluid control, this valve is built with forged SS 316 for maximum durability. Its bubble-tight shutoff, quarter-turn operation, and lockable lever provide safe and efficient media handling under rigorous conditions.

Exceptional Chemical and Temperature Resistance

With PTFE or PEEK seats and high-grade stainless steel construction, this ball valve withstands corrosive and aggressive fluids. Its temperature range of -20C to 180C suits a wide variety of hydraulic and process environments, offering flexibility across multiple industries.

Secure Installation and Reliable Sealing

The double O-ring and PTFE packing system ensure a robust, leak-free seal even under high pressures up to 6000 PSI. Optional panel mounting via the handle bracket means this valve can be easily integrated into diverse setups, supporting both new and retrofit applications.

FAQ's of DELIXIN-LOK Hydraulic Ball Valve (High Pressure):

Q: How does the DELIXIN-LOK Hydraulic Ball Valve ensure bubble-tight sealing?

A: The valve features precision-machined PTFE or PEEK seats combined with double O-ring and PTFE packing, delivering a leakage class of bubble tight, even at the highest pressures.

Q: What fluids can be safely handled with this ball valve?

A: This valve is compatible with a range of aggressive liquids and gases, including hydraulic oil, water, and general gases, making it suitable for various industrial applications.

Q: Where can the DELIXIN-LOK Hydraulic Ball Valve be installed?

A: With its threaded NPT female ends and optional panel mount (via handle bracket), this valve is ideal for use in high-pressure hydraulic systems and industrial fluid control panels.

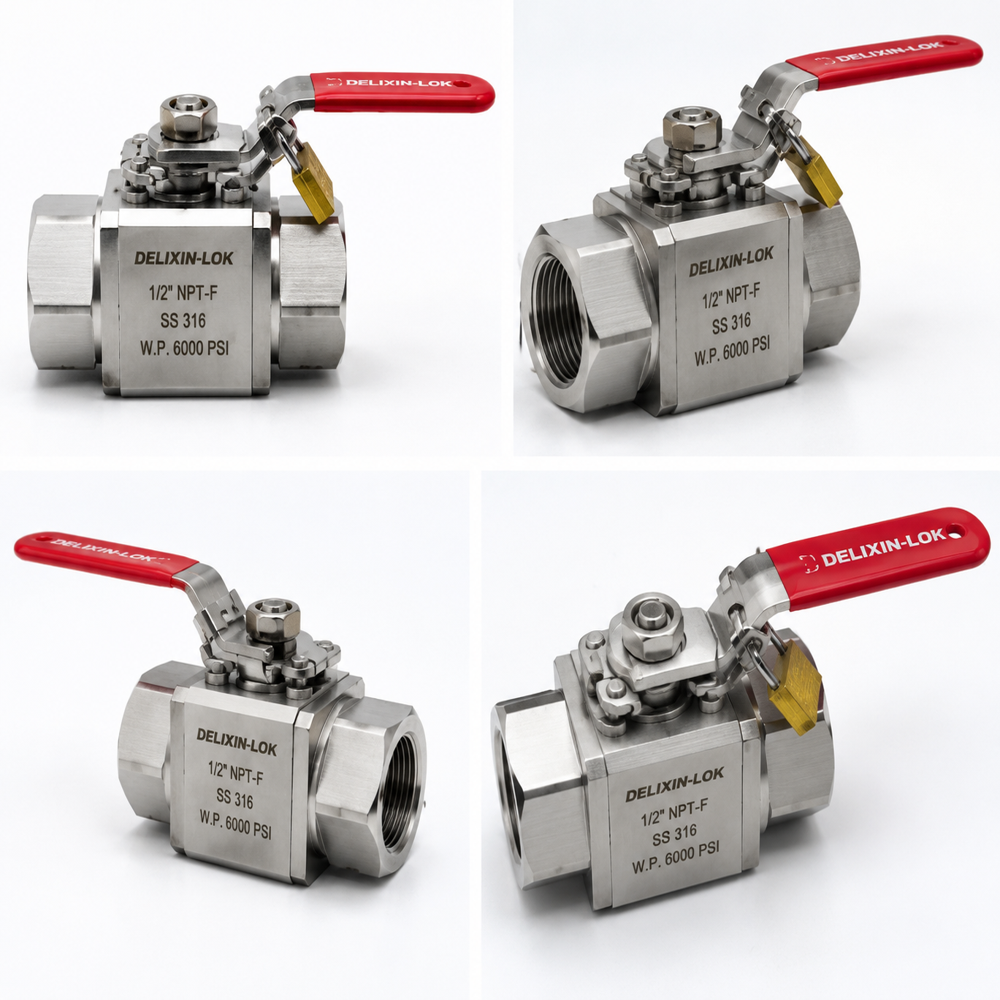

Q: What benefits does the lockable lever handle provide?

A: The lockable lever prevents unauthorized or accidental operation, ensuring enhanced safety in environments where precise flow control is critical.

Q: When is it necessary to use a valve with a blowout-proof stem?

A: The blowout-proof stem design is essential in high pressure systems to prevent stem ejection, enhancing operator safety and system integrity during sudden pressure surges.

Q: What is the expected service life of this valve?

A: Engineered from SS 316 with industry-standard seat materials, the valve delivers a long service life and reliable performance under continuous high-pressure applications.
