Check Valve

Experience the excellence of our Check Valve, meticulously engineered and perfected through over 8 years of expertise as an exporter, manufacturer, and supplier. Our Check Valve product range, including the Female Double Check Valve, Double Check Valve, Female Flat Face Double Check Valve, High Pressure Female Double Check Valve, and Male JIC Double Check Valve, stands out for its immaculate design, marvelous durability, and spectacular performance across a multitude of industries. These valves feature superior backflow prevention, robust corrosion resistance, easy installation, minimal maintenance requirements, and optimal sealing capabilities, making them the popular choice for businesses seeking reliability and efficiency. With a limited time discount, our products offer unmatched value compared to ordinary market options, and our supply ability covers all of India, ensuring prompt and seamless delivery to your doorstep. Choose our check valves and experience the confidence that comes with using the industry''s most advanced solutions, backed by the trust and satisfaction of countless clients nationwide.

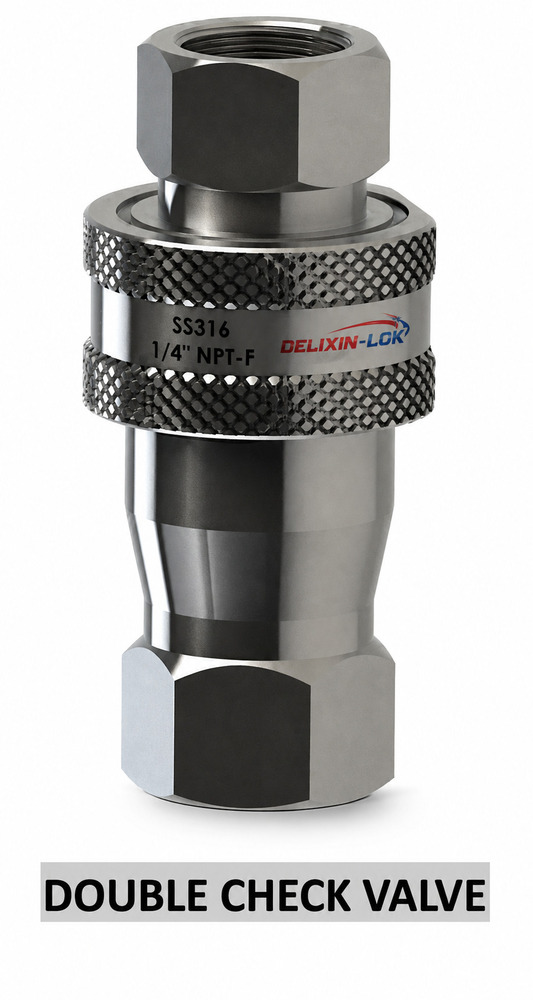

Double Check Valve

  • Application
  • Prevents reverse flow in piping systems
  • Connection Type
  • Threaded - NPT
  • Control System
  • None (Self-operating check mechanism)
  • Disc
  • Metal disc, spring loaded (internal)
  • Features
  • Corrosion resistance, Compact design, High pressure resistance
  • Material
  • Stainless Steel 316
  • Media
  • Other, Liquids, Gases, Air, Water, Oil, Steam
  • Port Size
  • 1/4 NPT (as marked on the valve)
  • Power
  • Other, Not Applicable (Manual Valve)
  • Pressure
  • Other, Upto 6000 PSI (varies by size and specs)
  • Sealing
  • PTFE/Viton (optional, based on application)
  • Structure
  • Other, Double check valve with threaded body
  • Temperature
  • -20C to 200C (Depending on seal and material)
  • Type
  • Non-return, double check type
  • Valve Size
  • 1/4 (other sizes available per make)
  • Valve Type
  • Double Check Valve

Female Double Check Valve

  • Application
  • Fluid and gas flow control, hydraulic and pneumatic systems
  • Connection Type
  • Female NPT Threaded
  • Control System
  • Non-actuated (passive check)
  • Disc
  • Dual disc/check mechanism
  • Features
  • High-pressure application, compact design, corrosion resistant, knurled body for hand tightening
  • Material
  • Carbon Steel (C.S)
  • Media
  • Other, Liquids, gases, air, inert fluids
  • Port Size
  • 1/4 NPT-F
  • Power
  • Other, Manual (Non-electric, non-actuated)
  • Pressure
  • Other, W.P. 100 BAR
  • Sealing
  • Metal to metal or PTFE (Teflon) option
  • Structure
  • Other, Double check valve, two-way
  • Temperature
  • -20C to 200C (typical, material dependent)
  • Type
  • Female Double Check Valve
  • Valve Size
  • 1/4 inch
  • Valve Type
  • Check Valve

Female Flat Face Double Check Valve

  • Application
  • Industrial hydraulic systems, prevention of reverse flow
  • Connection Type
  • Female threaded, NPT
  • Control System
  • Inline mechanical
  • Disc
  • Spring-loaded
  • Features
  • Corrosion resistant, high working pressure, leak-proof design
  • Material
  • Stainless steel
  • Media
  • Other, Hydraulic fluids, air, water, oil
  • Port Size
  • 1/2 NPT-F
  • Power
  • Other, Manual (Non-powered)
  • Pressure
  • Other, 450 BAR (W.P.)
  • Sealing
  • O-ring or metal-to-metal (depending on variant)
  • Structure
  • Other, Flat face, double check valve
  • Temperature
  • Up to 180C (varies with material)
  • Type
  • Double check valve
  • Valve Size
  • 1/2 inch
  • Valve Type
  • Flat face double check

Hih Pressure Female Double Check Valve

  • Application
  • Hydraulic systems, industrial process lines, gas and liquid flow control
  • Connection Type
  • Female threaded (BSP/NPT)
  • Control System
  • Manual/Direct-operated
  • Disc
  • Spring-loaded disc
  • Features
  • Corrosion resistant, leak-proof, high performance at high pressures
  • Material
  • Stainless Steel 316/304
  • Media
  • Other, Liquids, Gases, Hydraulic oil
  • Port Size
  • 1/4 inch to 2 inch (customizable)
  • Power
  • Other, Manual/Non-electric
  • Pressure
  • Other, Up to 6000 PSI
  • Sealing
  • PTFE or FKM seal
  • Structure
  • Other, Double check valve body with internal springs
  • Temperature
  • -20C to 200C
  • Type
  • High pressure female double check valve
  • Valve Size
  • Customizable; standard 1/2 inch, 3/4 inch, 1 inch
  • Valve Type
  • Double check

Male JIC Double Check Valve

  • Application
  • Hydraulic Systems, Industrial Fluid Control, Pneumatic Installations
  • Connection Type
  • Male JIC Thread
  • Control System
  • Mechanical Flow Control
  • Disc
  • Steel or Stainless Steel Ball
  • Features
  • Leak-proof Design, Corrosion Resistant, Compact
  • Material
  • Stainless Steel 316 or Carbon Steel
  • Media
  • Other, Hydraulic Oil, Air, Water
  • Port Size
  • JIC Male 1/4, 3/8, 1/2 (Custom sizes available)
  • Power
  • Other, Not Applicable (Mechanically Actuated)
  • Pressure
  • Other, Up to 5000 PSI (350 Bar)
  • Sealing
  • Viton or NBR Seals
  • Structure
  • Other, Double Check Valve
  • Temperature
  • -30C to 120C
  • Type
  • Male JIC Double Check Valve
  • Valve Size
  • 1/4 Inch to 1/2 Inch
  • Valve Type
  • Inline Double Check Valve
