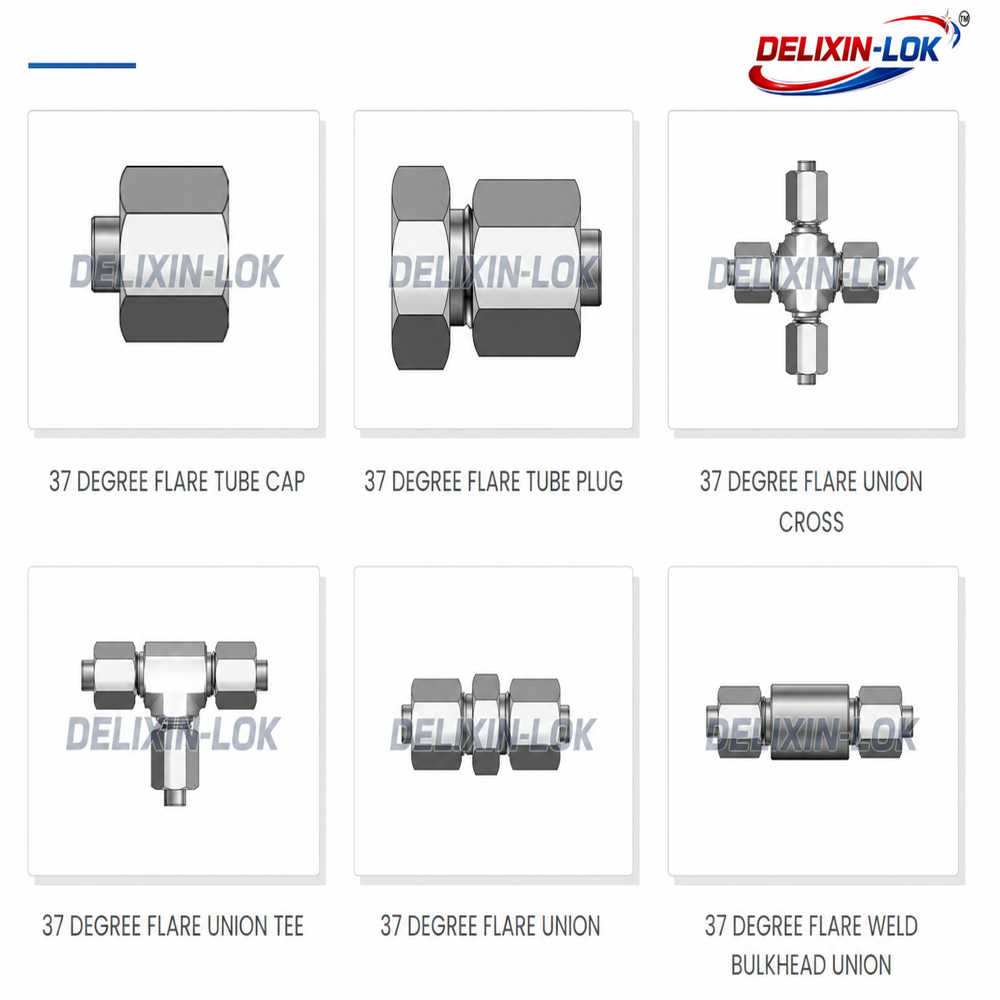

37 Degree Flare Union Cross

Name: 37 Degree Flare Union Cross
Brand: DELIXIN ENTERPRISES
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Unit

Get a Price/Quote

MOQ : 100 Units

37 Degree Flare Union Cross Specification

Shape
Union Cross

Head Code
Hexagon

Surface Treatment
Polished

With Rings
No

Working Mediums
Gas, Water, Oil

Plating
Nickel plated / Zinc plated / Plain

Temperature Range
-65F to 400F (-54C to 204C)

Material
Stainless Steel, Brass, Carbon Steel

Connection Type
Flare

Pressure Rating
Up to 6000 psi

Standard
SAE J514, ISO 8434-2

Application
Hydraulic, Pneumatic, Industrial Fluid Systems

Thread Type
UNF/UN

37 Degree Flare Union Cross Trade Information

Minimum Order Quantity
100 Units

Delivery Time
5-7 Days

About 37 Degree Flare Union Cross

BRAND	DELIXIN-LOK
37 DEGREE FLARE STANDARD	SAE J514 / ISO 8434-2
MATERIAL	CS, MS, SS 304L , SS 304 ,SS 316L, SS 316 , SS 316TI ( 1.4571) , COPPER , BRASS , SUPER DUPLEX , DUPLEX , ALLOY 20, MONEL , INCONEL , 904L , HASTELLOY , TITANIUM , 6MO, ALUMNIUM
37 DEGREE FLARE WORKING PRESSURE	100 BAR TO 800 BAR
SIZE RANGE	6 MM TO 42 MM, 1/8" JIC TO 2" JIC
BODY TYPE	FORGED, BAR STOCK
37 DEGREE FLARE ACCESSORIES	O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE - (-60C TO 240)
37 DEGREE FLARE SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
STAINLESS STEEL - EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL - (-40* C TO 120C) ,STAINLESS STEEL - (-60C TO 400C) BRASS - (-60C TO 175*C)
EQUIVALENT BRANDS	PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS
37 DEGREE FLARE APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL - ASTM A 276 , ASTM 182
STEEL - ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A.
BRASS - ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771.

Premium Flare Union Design

Our 37 Degree Flare Union Cross adopts a four-way cross shape with high-quality materials such as stainless steel, brass, and carbon steel. This ensures maximum compatibility and reliability, even in high-pressure environments up to 6000 psi. The component features a polished finish and offers various plating options for enhanced corrosion resistance.

Comprehensive Compliance and Versatility

Manufactured according to SAE J514 and ISO 8434-2 standards, these fittings guarantee industry-approved performance. They fit securely with UNF/UN threads and provide a robust leak-proof seal, suitable for gas, water, and oil systems, across hydraulic, pneumatic, and industrial settings.

FAQ's of 37 Degree Flare Union Cross:

Q: How is the 37 Degree Flare Union Cross typically used in fluid systems?

A: The 37 Degree Flare Union Cross is used to connect four tubing lines in hydraulic, pneumatic, or industrial fluid systems. Its unique shape and flare connection ensure a tight, leak-resistant seal for distributing or merging flows of gas, water, or oil.

Q: What are the main benefits of using a flare union cross with SAE J514 and ISO 8434-2 compliance?

A: Compliance with SAE J514 and ISO 8434-2 guarantees that the fitting meets global industry standards for safety, compatibility, and performance, ensuring reliable operation under high-pressure and temperature conditions.

Q: When should I choose stainless steel over brass or carbon steel for this fitting?

A: Stainless steel is ideal for corrosive environments or when maximum durability is required. Brass works well for moderate pressures and non-corrosive fluids, while carbon steel is best for high-pressure, non-corrosive applications.

Q: Where can these union cross fittings be installed?

A: These fittings are suitable for installation in various industrial settings, including hydraulic machines, pneumatic circuits, and fluid transfer systems in factories, vehicles, or processing plants.

Q: What is the connection process for a 37 Degree Flare Union Cross?

A: To connect, simply insert the flared tube end into the fitting, align it with the UNF/UN thread, and tighten the hexagon nut for a reliable, pressure-tight seal. No additional rings are needed.

Q: How does the surface treatment or plating benefit the fitting?

A: Options like nickel or zinc plating enhance corrosion resistance, extending service life in demanding conditions, while a plain or polished finish ensures easy maintenance and a professional appearance.
